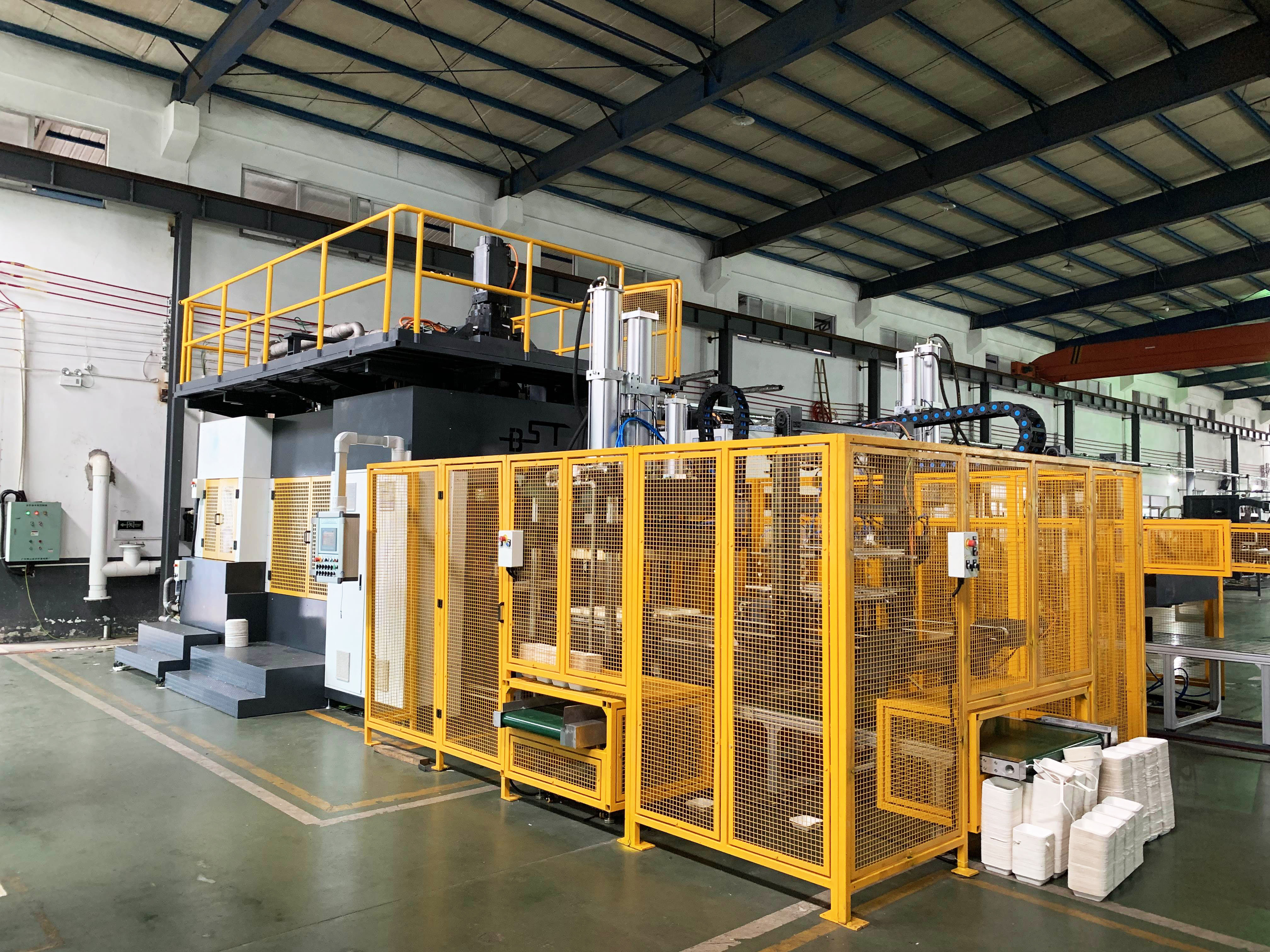

The most significant part of TL400 High precision & Fully Automatic Pulp Molding Cup Lid /Fine-art Package Production Line's appeal is its superior advantages. Made of high-quality raw materials, the product has many great characteristics.Moreover, it has a unique appearance which is designed to keep up with the latest trend by our creative designers. This Pulp Tableware Machine, Pulp Molding Machinery, Egg Tray Machine, Pulp Molding Production Line is bound to lead the industry trend.
Having introduced high-end innovative technologies, BeSure Technology Co., Ltd. has shortened the period of product development. Compared with other similar Guangdong, China products in the market, Pulp Tableware Machine, Pulp Molding Machinery, Egg Tray Machine, Pulp Molding Production Line it can be very stable and long-lasting when applied in the field(s) of Paper Product Making Machinery. Combining all good performance of adopted raw materials, our TL400 High precision & Fully Automatic Pulp Molding Cup Lid /Fine-art Package Production Line has been proved to be applied to the field(s) of Paper Product Making Machinery.Our staff has tested multiple times that in the applied fields, the product can give out its best performance such as durability and stability.
| Applicable Industries: | Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Printing Shops, Construction works , Food & Beverage Shops | Showroom Location: | Italy |
| Condition: | New | Product Type: | Paper Bag Making Machine |
| Processing Type: | Pulp Molding Machine | Place of Origin: | Guangdong, China |
| Brand Name: | BST | Voltage: | 220V/380V |
| Power: | 252.5KW per forming machine | Dimension(L*W*H): | 24mx18mx5m |
| Weight: | 15000 kg | Warranty: | 1 Year, One Year Guarantee |
| Production Capacity: | 4 tons per day | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Marketing Type: | New Product 2022 |
| Warranty of core components: | 3 years | Core Components: | PLC, Pressure vessel, Engine, Gear, Motor, Pump, Bearing, Gearbox |
| Name: | TL400 Pulp Molding Cup Lid Production Line | Main Machine Type: | TSMP-9570 Fully automatic cup lid machine |
| Driving mode: | Servo motor + precision reducer | Heating mode: | electric or thermal oil heating |
| Control system: | PLC+ touch screen control | Drying method: | in-mold drying |
| Producible product range: | height <130mm, thickness <1.0mm | Molding efficiency: | ≥35 seconds/mold (depending on the product) |
| Raw material: | Bagasse Pulp,Wood Pulp,Bamboo Pulp and so on. |
Fully Automatic Cup Lids Production Line
1. Pruducing the negative angle products in one time
2. Servo motor + mechanical drive structure, superior speed and high precision
3. Operation and maintenance the whole line with intelligent data, saving labor cost (forming, hot pressing, trimming, punching, visual inspection, sorting, packing and stacking are with fully automatic operation)
High precision servo motor drive,high efficiency and energy-saving drying line.
1,Use precision reducer servo motor forming and transferring to ensure smiith and fast operation.
2,Use absolute encoder to achieve accurate correction.
3,The use of bronze casting static and dynamic ring structure is more suitable for product dewatering process.
4,The use of mechanical structure to ensure that the mold close on both sides evenly.
5,Large capacity; Water content is low;Save the cost of drying.

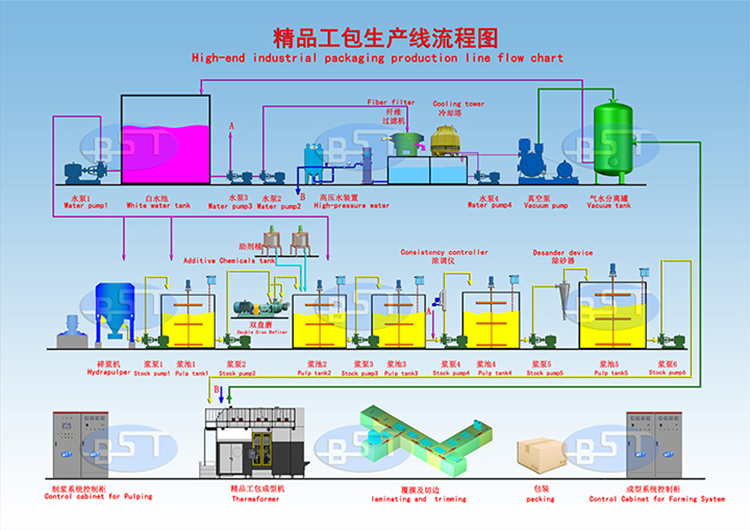

pulp board and clean waste paper will be made into pulp with certain concentration through pupling screening, grinding and addition of chemical agents, including:pupler,grinder,pulp tank, water tank,pulp pump,water pump,agitator,consistency and control cabinet.
Attach pulp onto the specially-made forming mold evenly through vacuum effect to make it into wet blank and then deliver it to the drying system.
Supply vacuum for product forming.
Supply compressed air for forming machine.
Supply high pressure water for washing molds of forming machine.
Automation Condition:Fully automatic design, forming, hot pressing, trimming, stacking four processes completed automatically in one machine.
Output: 2T/day(when producing different products, there will be a difference in production, this data is for reference only).
Operator Required: Pulping: Fully automatic operation, 1 operator required, mainly for weighing and feeding, but when it comes to other crushing, pulping, adding water and chemical additives, pumping, consistency adjustment, all is with complete auotmation;
Forming: 2 workers required for transferring the products after forming
After-process: 6 worke required for packaging and inspection
A total of 9 operators are required for the whole production line
Recommended Workshop Size: 24x 18 (m), height>5m.can be adjusted according to customer's requirement
Installation: Supplier should appoint 2 engineers to instruct buyer in installstion,test-run and training
Warranty: Life-long service, sustainable supply and upgrade of parts and components,One-year warranty( three-year warranty for machanical parts and main structure)
Production line configuration: The production line is standard, can also be customized according to customer demand, can be used to produce a variety of pulp molding tableware, such as meal boxes, dishes, plate, discs, separators,etc.
With more than 20 years of accumulated technical experience, we will be based on your investment intentions, such as capital, plant, target market and other details of a full range of analysis.
On sale service
1.According to your internal size of the workshop, we will not only provide you detailed layout, the planning of pipe and line design, also provide basis of your equipment infrastructure construction, procurement and installation of materials.
2.When equipment into the factory, by the capable installation team to install and debug; After commissioning, the staff training of the system, including two parts: classroom explanation and practice, the structure of the equipment, principle and production technology, day-to-day maintenance and common troubleshooting and other contents of the detailed explanation and practical exercises.
After-sale service
The equipment we sold: "Lifelong tracking service, one year free warranty" (except for vulnerable parts and abnormal failure), one year after, the cost of spare parts and service.
