Our EC5400 High Capacity Paper Egg Box Machine is the perfect result of combining the perfect performance of all adopted raw materials. Thanks to that, Pulp Tableware Machine, Pulp Molding Machinery, Egg Tray Machine, Pulp Molding Production Line has many great features. Also, it is designed scientifically and reasonably. Its internal structure and external appearance are meticulously designed by our professional designers and technicians. Customers' requirements and tastes can be well satisfied.
With the effort of excellent designers,EC5400 High Capacity Paper Egg Box Machine has unique style in its shape and appearance. The continued success of our product has been built upon consistent and competitive pricing, quality workmanship, quick response time and outstanding customer service. In the future,Foshan BeSure Technology Co., Ltd. will open up channels for introducing talents, and improve technological innovation capabilities by introducing more outstanding talents as intellectual support, so as to achieve better and faster development.
| Applicable Industries: | Food & Beverage Factory, Farms, Food Shop, Food & Beverage Shops | Showroom Location: | Canada, Mexico, Russia, South Africa, Malaysia |
| Condition: | New | Product Type: | Egg Box Machine |
| Processing Type: | Pulp Molding Machine | Place of Origin: | Guangdong, China |
| Brand Name: | BST | Voltage: | 220V/380V |
| Power: | 360-420kw.hr | Dimension(L*W*H): | 80mx12mx5m |
| Weight: | 45 kg | Warranty: | 1 Year |
| Production Capacity: | 5400pcs/h | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Marketing Type: | Hot Product 2019 |
| Warranty of core components: | 3 years | Core Components: | Engine, Motor |
| Certification: | ce | After-sales Service Provided: | Engineers available to service machinery overseas |
| Name: | High Capacity Paper Egg Box Machine EC5400 | Application: | for production of egg carton which contain 6,8,10,12,15 or 18 eggs |
| Machine Type: | Fully automatic | Material of pulp tank and plate: | stainless steel |
| Control method: | PLC+Touch screen control | Electronical control part brand: | Siemens |
| Law material: | used newspaper, waste paper & cartons, white paper edge | Service: | installation,Training,Technical support |
BST Semi-automatic, full-automatic, automatic, pulp molding machine, pulp molding production line, pulp molded machine for egg carton, egg box, egg cartons, egg boxes, pulp molded egg cartons, high efficiency, energy-saving, with CE certified.
Product Parameters | ||
Product name | Fully Automatic Egg Box Production Line | |
Model | EC5400 | |
Applicable industries | Poultry, animal husbandry, agriculture, carton production industry, printing industry, paper industry | |
Usage | For Production of egg box which contain 6,8,10,12,15 or 18 eggs | |
Capacity | 5400pcs/hr | |
Production Consumption | ||||
Description | Consumption Per Hour | Remark | ||
Waste Paper | 270-320kg/hr | |||
Water | 1.6-1.8t/hr | |||
Electricity | 240-280kw/hr | Heated by natural gas ,LPG,Diesel | ||
0#Diesel Oil | 55-65kg/hr | Choose anyone from the three | ||
Natural Gas | 65-75m³/hr | |||
High precision servo motor drive,high efficiency and energy-saving drying line.
1,Use precision reducer servo motor forming and transferring to ensure smiith and fast operation.
2,Use absolute encoder to achieve accurate correction.
3,The use of bronze casting static and dynamic ring structure is more suitable for product dewatering process.
4,The use of mechanical structure to ensure that the mold close on both sides evenly.
5,Large capacity; Water content is low;Save the cost of drying.

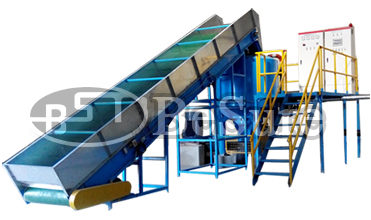

pulp board and clean waste paper will be made into pulp with certain concentration through pupling screening, grinding and addition of chemical agents, including:pupler,grinder,pulp tank, water tank,pulp pump,water pump,agitator,consistency and control cabinet.

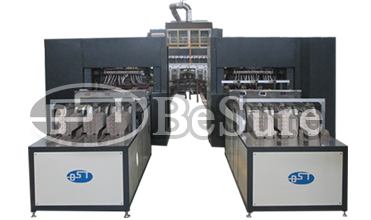

Attach pulp onto the specially-made forming mold evenly through vacuum effect to make it into wet blank and then deliver it to the drying system.

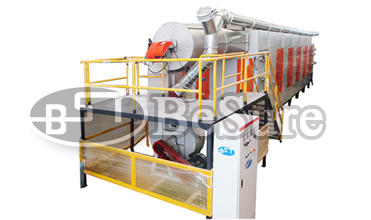

Use geating fuels,such as GAS,LPG,LNG,diesel ,steam and thermo oil to dry the formeg wet blanks.

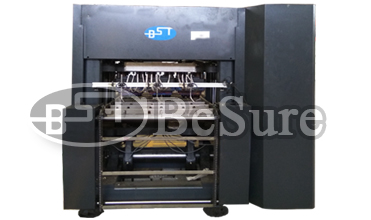

automatically deliver the dried products to the hot press and stack them up after hot pressing.

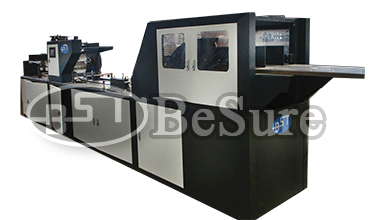

take the hot-pressed products to the labelling machine or printing machine,they will be separated,labelled or printed automatically and then stacked up for manual packing.

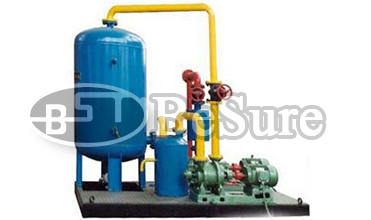

Supply vacuum for product forming.

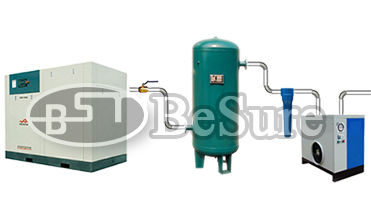

Supply compressed air for forming machine.

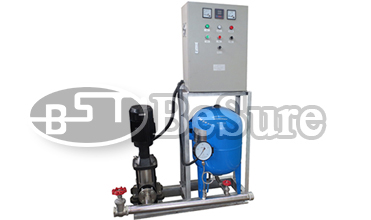

Supply high pressure water for washing molds of forming machine.
Production Line Overview
Automation Condition;Fully automatic production line,Only putting material and packing manually,other processes pulping,forming,drying,hot pressing and stacking automatically.
Output: Maximun capacity:5400 pcs/hr.(product size:300*250mm,weight:45-60g/pc)
Operator Required: 5people/shift to operate the whole system.(One for pulping,one for forming ,one for stacting and one for moving.)
Recommended Workshop Size: 55x 24 (m), height>5m.can be adjusted according to customer's requirement
Installation: Supplier should appoint 2 engineers to instruct buyer in installstion,test-run and training
Warranty: Life-long service, sustainable supply and upgrade of parts and components,One-year
warranty( three-year warranty for machanical parts and main structure)
Production line configuration: this is a standard production,or we can fulfill the needs of customized require
Pre-sales service
With more than 20 years of accumulated technical experience, we will be based on your investment intentions, such as capital, plant, target market and other details of a full range of analysis.
On sale service
1.According to your internal size of the workshop, we will not only provide you detailed layout, the planning of pipe and line design, also provide basis of your equipment infrastructure construction, procurement and installation of materials.
2.When equipment into the factory, by the capable installation team to install and debug; After commissioning, the staff training of the system, including two parts: classroom explanation and practice, the structure of the equipment, principle and production technology, day-to-day maintenance and common troubleshooting and other contents of the detailed explanation and practical exercises.
After-sale service
The equipment we sold: "Lifelong tracking service, one year free warranty" (except for vulnerable parts and abnormal failure), one year after, the cost of spare parts and service.
