In order to discover more High Capacity Fully Automatic Pulp Egg Carton Making Machine with forming,hot pressing,drying,stacking system performance, we have been upgrading the technologies used in our company.It has been proved that the product has a solid performance in the field(s) of Paper Product Making Machinery.
With immense market knowledge, we have been able to provide optimum quality High Capacity Fully Automatic Pulp Egg Carton Making Machine with forming,hot pressing,drying,stacking system. High Capacity Fully Automatic Pulp Egg Carton Making Machine with forming,hot pressing,drying,stacking system attaches great importance to technological innovation in the research and development process. The launch of a product that perfectly solves the industry's pain points is that Foshan BeSure Technology Co., Ltd. has always adhered to the goal of technological innovation, and the newly developed products perfectly solve the pain points that have been lingering in the industry for a long time. Once launched, they have been enthusiastically sought after by the market.
| Applicable Industries: | Farms | Showroom Location: | France, India, Mexico, Russia, South Africa |
| Condition: | New | Product Type: | Egg Box Machine |
| Processing Type: | Pulp Molding Machine | Place of Origin: | Guangdong, China |
| Brand Name: | BST | Voltage: | 220V/380V |
| Power: | 591 kw for the whole production line | Dimension(L*W*H): | 80mx12mx5m |
| Weight: | 15000 kg | Warranty: | 1 Year |
| Production Capacity: | 160 pcs/min | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Marketing Type: | Ordinary Product |
| Warranty of core components: | 3 years | Core Components: | PLC, Gear, Bearing |
| Name: | EC9600 Pulp Molding Egg Carton Production Line | Application: | for production of egg carton which contain 6,8,10,12,15 or 18 eggs |
| Capacity: | 9600 pcs/hr | Forming Machine Type: | FR8-22540 Automatic Rotary Forming Machine |
| Material of pulp tank and plate: | stainless steel | Control method: | PLC+Touch screen control |
| Law material: | used newspaper, waste paper & cartons, white paper edge | After-sales Service: | installation,Training,Technical support |
| Certification: | ce | Forming platen: | 8-face rotary structure |
BST Semi-automatic, full-automatic, automatic, pulp molding machine, pulp molding production line, pulp molded machine for egg carton, egg box, egg cartons, egg boxes, pulp molded egg cartons, high efficiency, energy-saving, with CE certified.
High precision servo motor drive,high efficiency and energy-saving drying line.
1,Use precision reducer servo motor forming and transferring to ensure smiith and fast operation.
2,Use absolute encoder to achieve accurate correction.
3,The use of bronze casting static and dynamic ring structure is more suitable for product dewatering process.
4,The use of mechanical structure to ensure that the mold close on both sides evenly.
5,Large capacity; Water content is low;Save the cost of drying.

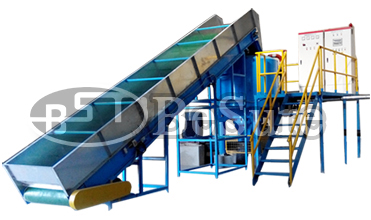

pulp board and clean waste paper will be made into pulp with certain concentration through pupling screening, grinding and addition of chemical agents, including:pupler,grinder,pulp tank, water tank,pulp pump,water pump,agitator,consistency and control cabinet.

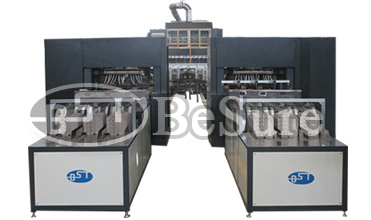

Attach pulp onto the specially-made forming mold evenly through vacuum effect to make it into wet blank and then deliver it to the drying system.

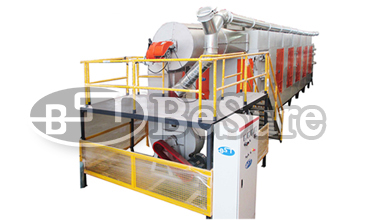

Use geating fuels,such as GAS,LPG,LNG,diesel ,steam and thermo oil to dry the formeg wet blanks.

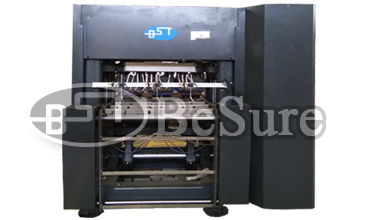

automatically deliver the dried products to the hot press and stack them up after hot pressing.

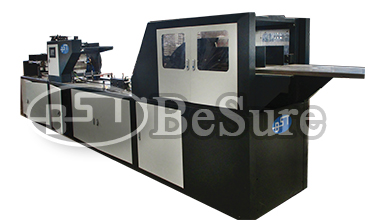

take the hot-pressed products to the labelling machine or printing machine,they will be separated,labelled or printed automatically and then stacked up for manual packing.

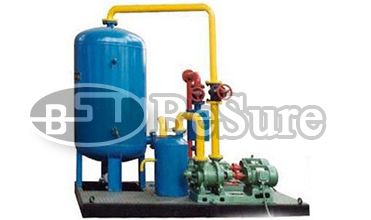

Supply vacuum for product forming.

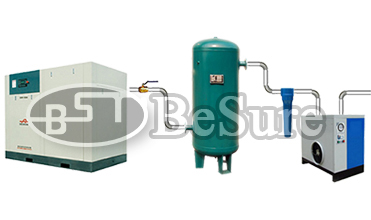

Supply compressed air for forming machine.

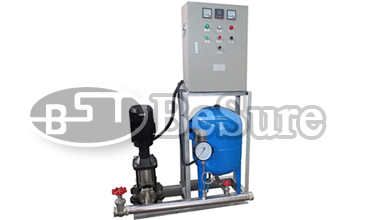

Supply high pressure water for washing molds of forming machine.

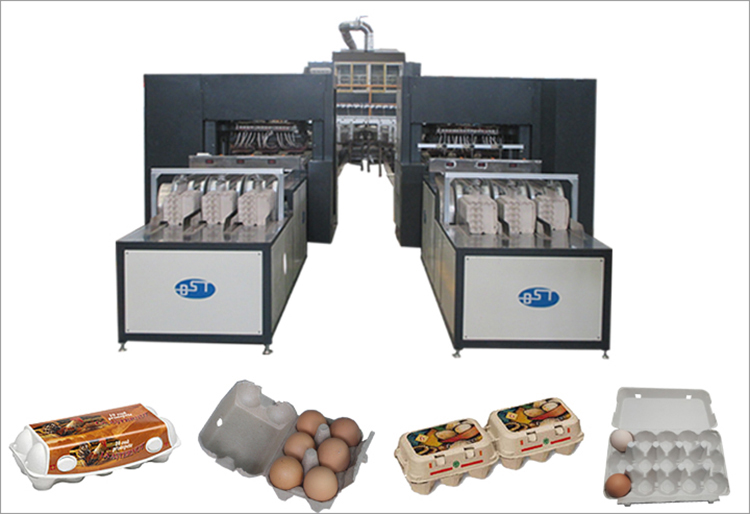

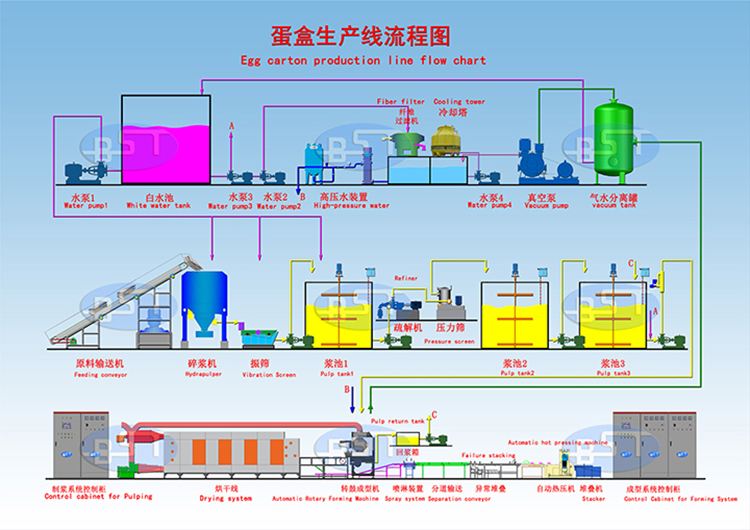

Production Line Overview
Automation Condition;Fully automatic production line,Only putting material and packing manually,other processes pulping,forming,drying,hot pressing and stacking automatically.
Output: Maximun capacity:9600 pcs/hr.(product size:300*250mm,weight:45-60g/pc)
Operator Required: 5people/shift to operate the whole system.(One for pulping,one for forming ,one for stacting and one for moving.)
Recommended Workshop Size: 80x 12 (m), height>5m.can be adjusted according to customer's requirement
Installation: Supplier should appoint 2 engineers to instruct buyer in installstion,test-run and training
Warranty: Life-long service, sustainable supply and upgrade of parts and components,One-year
warranty( three-year warranty for machanical parts and main structure)
Production line configuration: this is a standard production,or we can fulfill the needs of customized require
Pre-sales service
With more than 20 years of accumulated technical experience, we will be based on your investment intentions, such as capital, plant, target market and other details of a full range of analysis.
On sale service
1.According to your internal size of the workshop, we will not only provide you detailed layout, the planning of pipe and line design, also provide basis of your equipment infrastructure construction, procurement and installation of materials.
2.When equipment into the factory, by the capable installation team to install and debug; After commissioning, the staff training of the system, including two parts: classroom explanation and practice, the structure of the equipment, principle and production technology, day-to-day maintenance and common troubleshooting and other contents of the detailed explanation and practical exercises.
After-sale service
The equipment we sold: "Lifelong tracking service, one year free warranty" (except for vulnerable parts and abnormal failure), one year after, the cost of spare parts and service.
Capacity:9600pcs/hr
Capacity:5400pcs/hr
Capacity:3500pcs/hr
