Focusing on pulp molding equipment for over 25 years.
A variety of sophisticated technologies are being used in manufacturing Pulp Tableware Machine, Pulp Molding Machinery, Egg Tray Machine, Pulp Molding Production Line.With the improvement of product performance, its application ranges have been broadened as well. So far, it has been proved to be used in the field(s) of Paper Product Making Machinery.
There are so many different egg carton machine molded pulp machine egg carton making machine products for different age groups and budgets. egg carton machine molded pulp machine egg carton making machine attaches great importance to technological innovation in the research and development process. Foshan BeSure Technology Co., Ltd. adhere to the corporate philosophy of 'people orientation' and always advocate honesty, innovation, and fairness. We hope to occupy an important position in the industry and become one of the most leading brands in the future.
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Farms, Food Shop, Food & Beverage Shops | Showroom Location: | Russia |
| Condition: | New | Product Type: | Other |
| Processing Type: | Pulp Molding Machine | Place of Origin: | Guangdong, China |
| Brand Name: | BST | Voltage: | 220V/380V |
| Power: | 286kw.hr | Dimension(L*W*H): | 54mx21mx6m |
| Weight: | 35000 kg | Warranty: | 1 Year |
| Production Capacity: | 5400pcs/h | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Marketing Type: | New Product 2019 |
| Warranty of core components: | 3 years | Core Components: | PLC, Gear, Motor, Bearing |
| After-sales Service Provided: | Engineers available to service machinery overseas | Name: | Pulp Molding Machine |
| Application: | for production of egg carton which contain 6,8,10,12,15 or 18 eggs | Machine Type: | Fully automatic |
| Capacity: | 5400 pcs/hr | Control method: | PLC+Touch screen control |
| Electronical control part brand: | Siemens | Law material: | used newspaper, waste paper & cartons, white paper edge |
| Service: | installation,Training,Technical support | Final Products: | Top-grade electrical products |
BST Semi-automatic, full-automatic, automatic, pulp molding machine, pulp molding production line, pulp molded machine for high end packages, exquisite cartons, gift boxes, beauty ware boxes, pulp molded packages for exquisite goods, high efficiency, energy-saving, with CE certified.
Product Parameters | ||

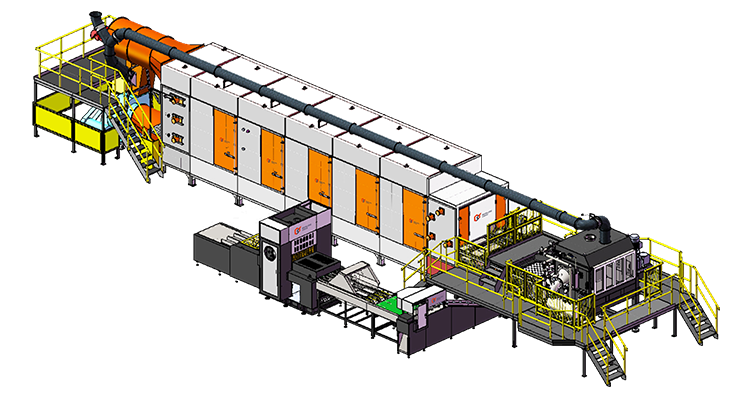

Product name | Fully Automatic Production Line of Pulp Molding | |
Model | ET5400 | |
Applicable industries | Egg catron, coffee tray... | |
Usage | 6pc/drop; 8pc/drop(basing on 10/12 cells egg tray) | |
Capacity | 5400pcs/hr | |
Waste Paper | 356kg/hr | |
Water | 1.07kg/hr | |
Electricity | 286kw/hr | |
Water-proof | 10.6kg/hr | |

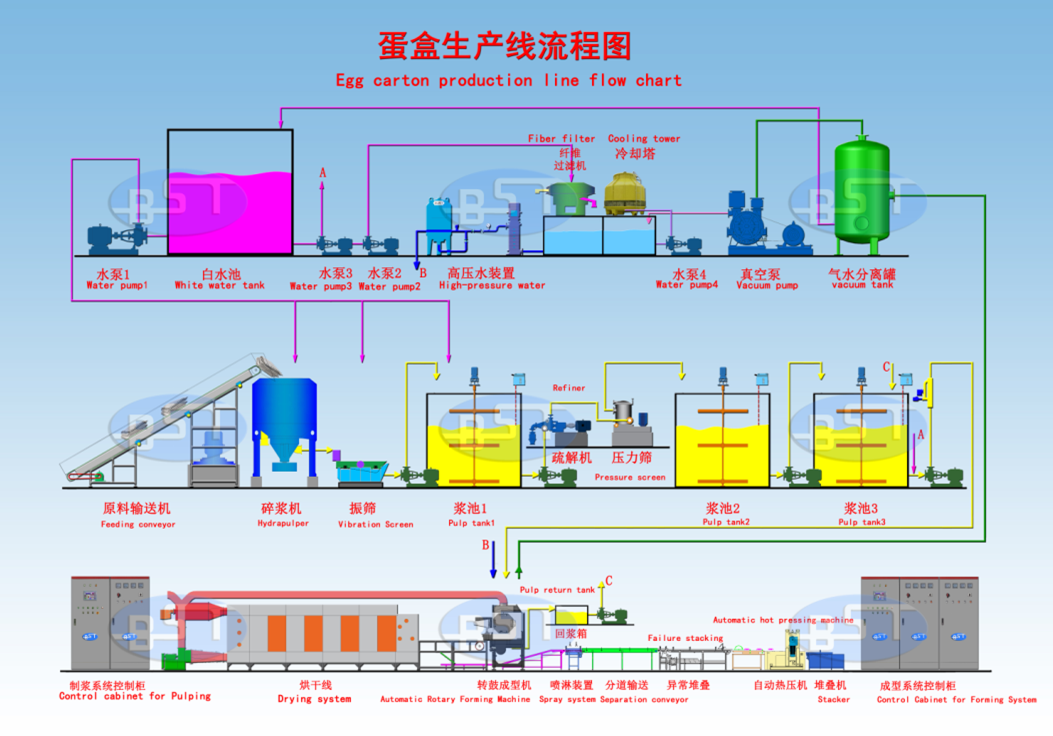

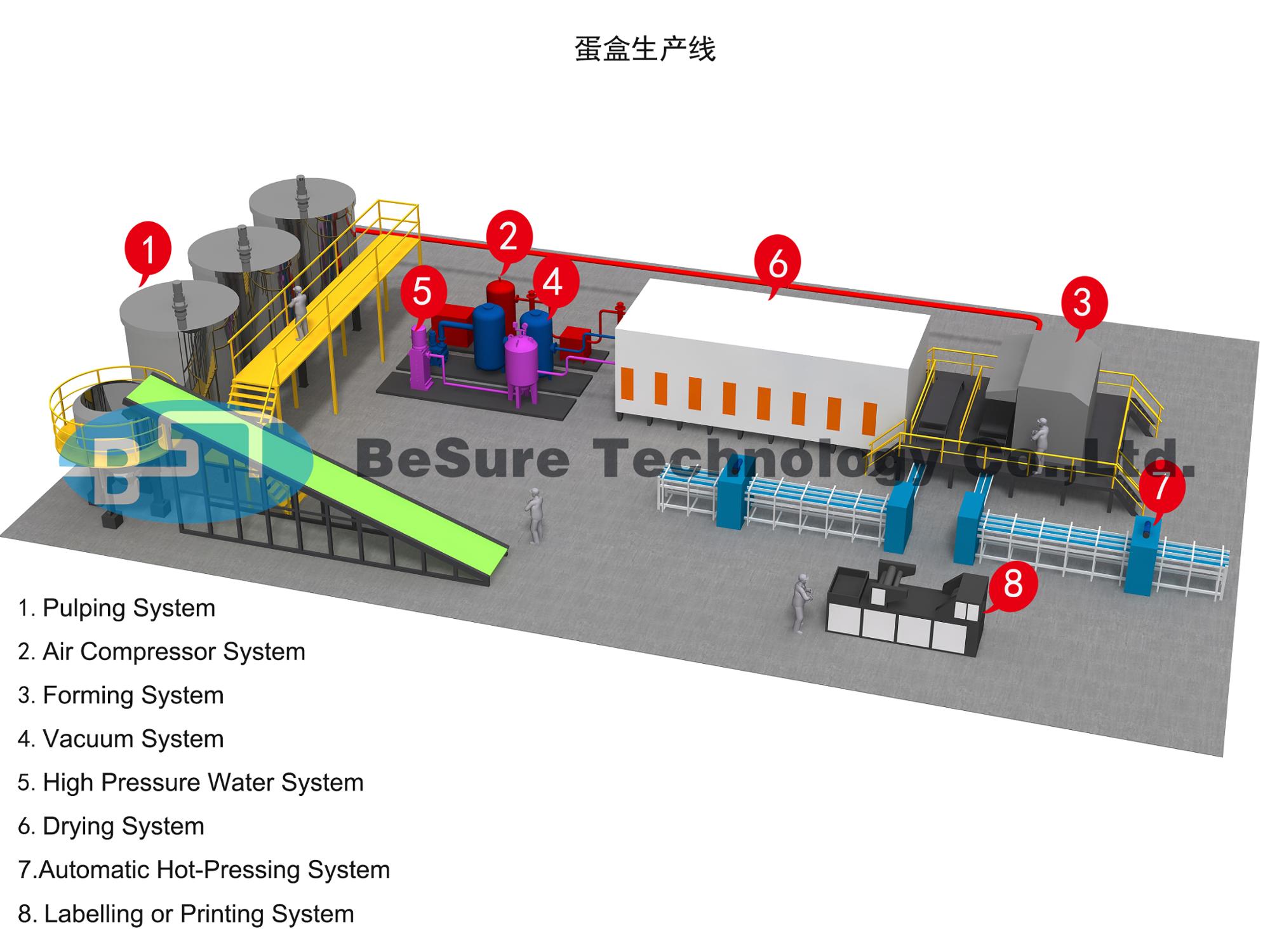

Forming System: 2drop/4drops/8drops rotary (with the function of washing mold / product burrs, equipped with preheating system)
Drying System：6 layer drying line/8 layer drying line
Hot Press System：2 trays, 3tray or 4trays each time
Stacking System：two channel stacker ; three channel stacker ; four channel stacker(with automatic counting function)
1.Large output and high return on investment
Capacity is from 2200-9600pcs/hour
2.high degree of automation,hot pressing through the line
4-5 operators are needed only.
3.Energy aving
Multi-layer high-efficiency drying line, saving natural gas.
Pre-sales service
With more than 20 years of accumulated technical experience, we will be based on your investment intentions, such as capital, plant, target market and other details of a full range of analysis.
On sale service
1.According to your internal size of the workshop, we will not only provide you detailed layout, the planning of pipe and line design, also provide basis of your equipment infrastructure construction, procurement and installation of materials.
2.When equipment into the factory, by the capable installation team to install and debug; After commissioning, the staff training of the system, including two parts: classroom explanation and practice, the structure of the equipment, principle and production technology, day-to-day maintenance and common troubleshooting and other contents of the detailed explanation and practical exercises.
After-sale service
The equipment we sold: "Lifelong tracking service, one year free warranty" (except for vulnerable parts and abnormal failure), one year after, the cost of spare parts and service.
Feel free to contact us
The first thing we do is meeting with our clients and talk through their goals on a future project.
During this meeting, feel free to communicate your ideas and ask lots of questions.
They are all manufactured according to the strictest international standards. Our products have received favor from both domestic and foreign markets.
Besure Technology was founded in 1997 and is committed to providing one-stop eco-friendly pulp molding equipment solutions.
