Focusing on pulp molding equipment for over 25 years.
The utilization of technologies facilitates the high-efficiency and cost-saving manufacturing process.With those advantages,Environmental Protection Packing Paper Pulp Molding Fine-art Industrial Packaging production line has been tested to be suitable for the application range(s) of Paper Product Making Machinery.
BeSure Technology Co., Ltd. through years of painstaking research, relying on mature R&D technology and precise market positioning, we have created Environmental Protection Packing Paper Pulp Molding Fine-art Industrial Packaging production line. The product is endowed with stable and multi-functional performance. It is mainly used in the application field(s) of Paper Product Making Machinery. BeSure Technology Co., Ltd. has successfully expanded its business in market in the past few years and it is very possible for the company to have a better development in the future.
| Applicable Industries: | Manufacturing Plant | Showroom Location: | France, India, Mexico, Russia, South Africa |
| Condition: | New | Product Type: | Pulp molding industrial packaging |
| Processing Type: | Pulp Molding Machine | Place of Origin: | Guangdong, China |
| Brand Name: | BST | Voltage: | 220V/380V |
| Power: | 1010 kw for the whole production line | Dimension(L*W*H): | 24mx18mx5m |
| Weight: | 20000 kg | Warranty: | One Year |
| Production Capacity: | ≥35 seconds/mold (depending on the product) | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Marketing Type: | Ordinary Product |
| Warranty of core components: | 3 years | Core Components: | PLC, Bearing |

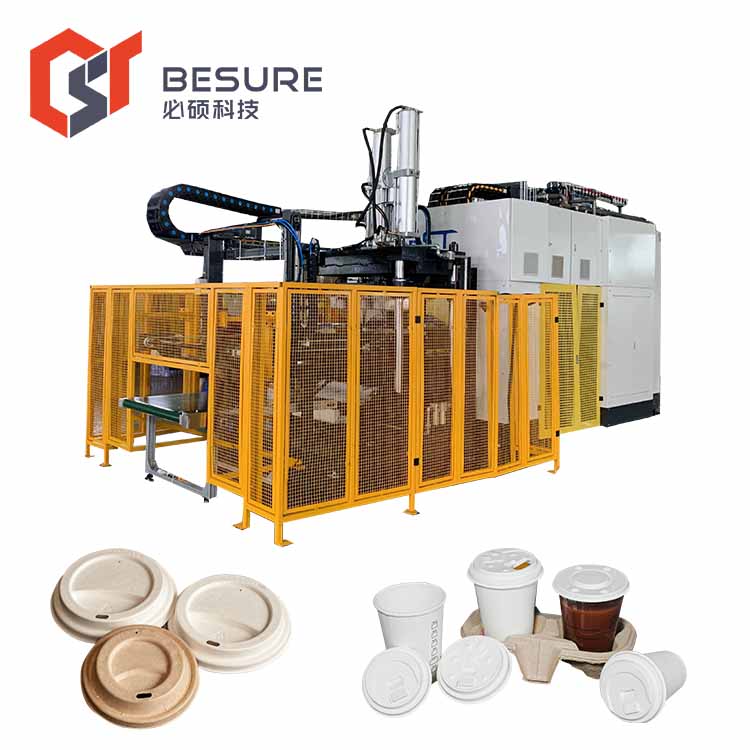

| Name: | Fully Automatic Fine-art Packages Production Line | Application: | to produce the Fine-art Packages |
| Main forming Machine Type: | TSMP-9570 | Capacity: | 2t/d |
| Control method: | PLC+Touch screen control | Law material: | used newspaper, waste paper,white paper edge and wood pulp etc |
| Producible product range: | height <130mm, thickness <1.0mm | Heating mode: | electric or thermal oil heating |
| Certification: | ce | Service: | installation,Training,Technical support |
1. Superior speed, high precision, good controllability, with pre-press function, able to produce small-angle products;
2. High repeat positioning accuracy, suitable for various complex products
3. Unique positioning device, with rapid mold replacement, shortening the production cycle.
Product Parameters | ||

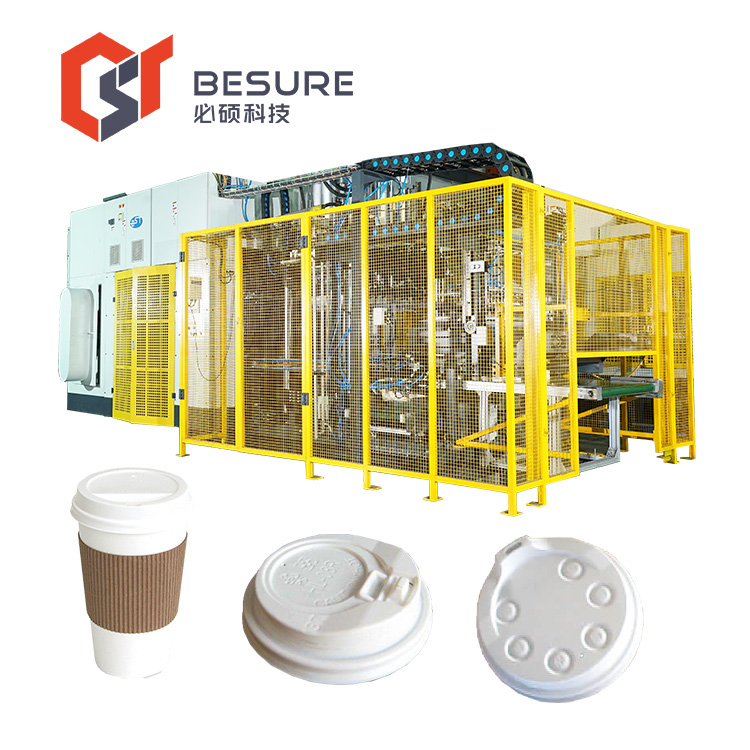

Product name | Fully Automatic Production Line of Pulp Molding | |
Model | FP2000 | |
Applicable industries | Top-grade electrical products, wearable smart devices, electronics、wine industry | |
Usage | production package for cell phone,wearable smart device, meat trays, vegetable trays | |
Capacity | 2t/day | |
Production Consumption | ||||
DESC | Consumption Per Ton | Remark | ||
Pulp | 92kg/T | |||
Water | 276KG/T | |||
Electricity | 710kW/T | |||
0#Diesel Oil | 40-75kg | Choose anyone from the three | ||
Natural Gas | 55-115m³ | |||
LPG | 45-90kg | |||
Chemical for Water Resistence | 4.5-9kg | Solid Content | ||
High precision servo motor drive,high efficiency and energy-saving drying line.
1,Use precision reducer servo motor forming and transferring to ensure smiith and fast operation.
2,Use absolute encoder to achieve accurate correction.
3,The use of bronze casting static and dynamic ring structure is more suitable for product dewatering process.
4,The use of mechanical structure to ensure that the mold close on both sides evenly.
5,Large capacity; Water content is low;Save the cost of drying.

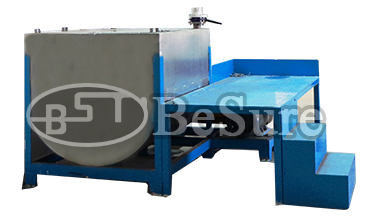

pulp board and clean waste paper will be made into pulp with certain concentration through pupling screening, grinding and addition of chemical agents, including:pupler,grinder,pulp tank, water tank,pulp pump,water pump,agitator,consistency and control cabinet.
Attach pulp onto the specially-made forming mold evenly through vacuum effect to make it into wet blank and then deliver it to the drying system.
Supply vacuum for product forming.
Supply compressed air for forming machine.
Supply high pressure water for washing molds of forming machine.
Production Line Overview
Automation Condition;Fully-automatic production line, pulping, forming hot pressing for automatic completion, post-processing (trimming, punching, etc.) for manual operation..
Output: 2T/day（when producing different products, there will be a difference in production, this data is for reference only）.
Operator Required: Pulping machine 1 People, the main operation 2 people, 6 workers required for packaging and inspection,A total of 9 operators are required for the whole production line
Recommended Workshop Size: 28x 56(m), height>5m.can be adjusted according to customer's requirement
Installation: Supplier should appoint 2 engineers to instruct buyer in installstion,test-run and training
Warranty: Life-long service, sustainable supply and upgrade of parts and components,One-year warranty( three-year warranty for machanical parts and main structure)
Production line configuration: The production line is standard, can also be customized according to customer demand, can be used to produce a variety of pulp molding tableware, such as meal boxes, dishes, plate, discs, separators,etc.
Pre-sales service
With more than 20 years of accumulated technical experience, we will be based on your investment intentions, such as capital, plant, target market and other details of a full range of analysis.
On sale service
1.According to your internal size of the workshop, we will not only provide you detailed layout, the planning of pipe and line design, also provide basis of your equipment infrastructure construction, procurement and installation of materials.
2.When equipment into the factory, by the capable installation team to install and debug; After commissioning, the staff training of the system, including two parts: classroom explanation and practice, the structure of the equipment, principle and production technology, day-to-day maintenance and common troubleshooting and other contents of the detailed explanation and practical exercises.
After-sale service
The equipment we sold: "Lifelong tracking service, one year free warranty" (except for vulnerable parts and abnormal failure), one year after, the cost of spare parts and service.
Feel free to contact us
The first thing we do is meeting with our clients and talk through their goals on a future project.
During this meeting, feel free to communicate your ideas and ask lots of questions.
They are all manufactured according to the strictest international standards. Our products have received favor from both domestic and foreign markets.
Besure Technology was founded in 1997 and is committed to providing one-stop eco-friendly pulp molding equipment solutions.
