Egg Tray Machine
VR
INTRODUCTION

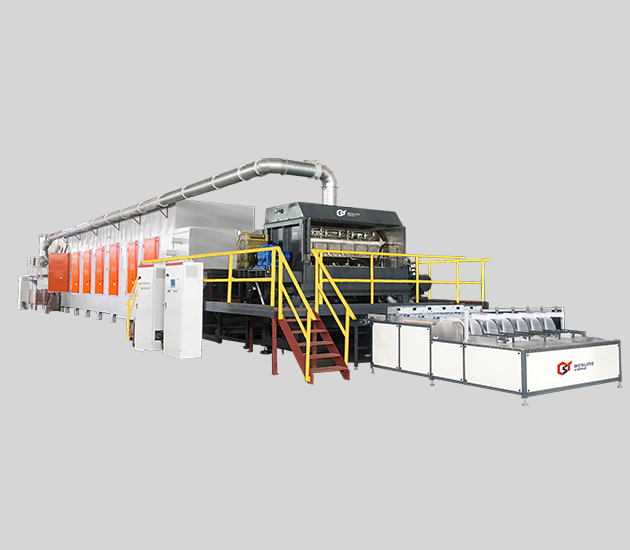

The automatic reciprocating tray production line is composed of the pulping system, forming system, drying system, stacking system, vacuum system, high pressure water system and air compressor system. It is used to produce egg trays, fruit trays, beverage tray,s wine trays, coffee care, medical care and other products. Using waste paper such as newspaper, carton paper, office paper, scrap and other waste materials as raw materials, it is prepared into a slurry with a certain concentration through hydraulic crushing, filtration, water injection and other processes, and is vacuumed on a special metal mold by a reciprocating molding machine. It is absorbed into a wet billet, then dried by a drying line, and then stacked.


The host system consists of a reciprocating forming machine, a six-layer drying line and a stacking machine. The high degree of automation of the whole line saves labor costs; flexible production and provides easy maintenance.

SPECIFICATION


Models: ET1200 / ET1500 / ET1800

Production Line Composition: Forming System:1Platen reciprocating forming (with the function of washing mold / product burrs, equipped With preheating system). Drying System: 6 layer drying line. Stacking System: Single channel stacker (with automatic counting function)

Production Line Composition(mm): 1600x400 / 1900x400 / 2250x400

Design capacity of production line(based on 30cell egg tray): 1200pcs/hour / 1500pcs/hour / 1800pcs/hour

Forming Type: Reciprocating pulp suction and forming

Forming Cycle Time: ≤ 5 plates/minute

Mold Distribution:  Mold Distribution 5pc/drop; 6pc/drop(basing on 30 cells egg tray)

Product Height: ≤70mm

Heating Fuels: Gas, Thermal oil, LPG, LNP or steam(if with steam, the drying system is to be lengthened basing on the specific output capacity)

Control Method: PLC + touch screen

Remarks: The above parameters are for reference. Due to the continuous development of technology, relevant data will be continuously updated

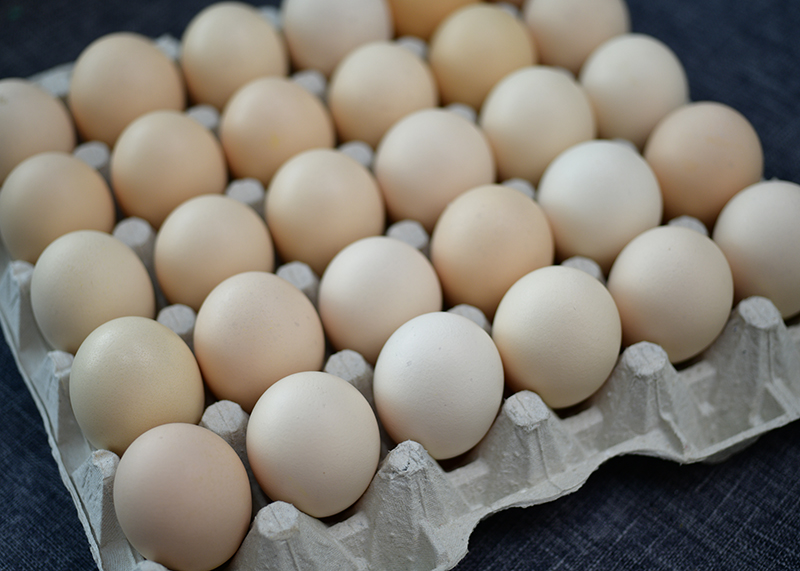

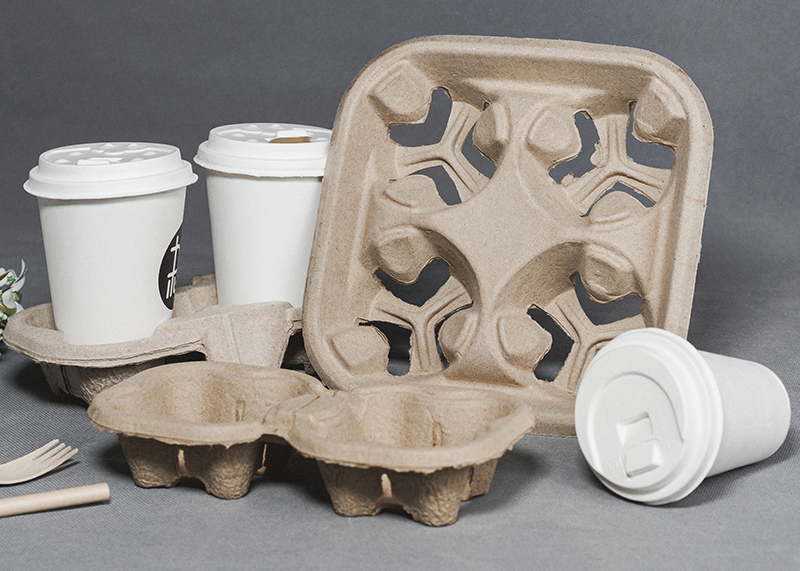

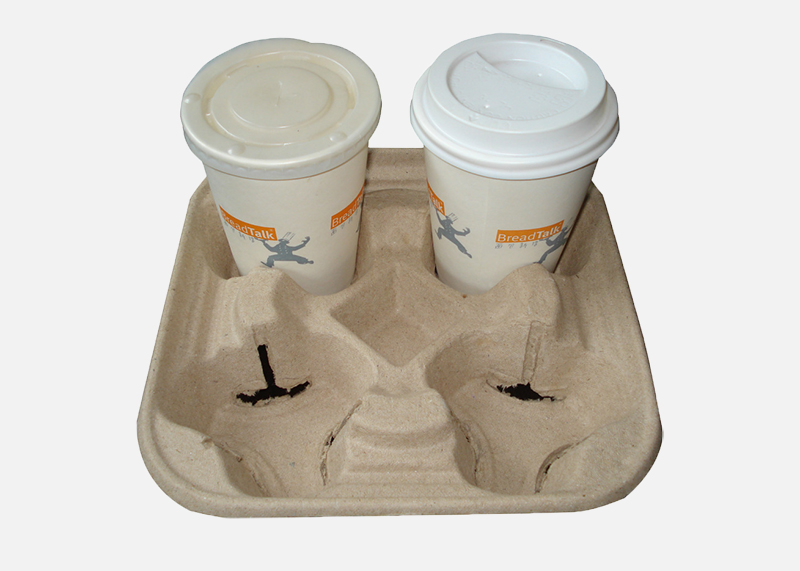

OUTPUT PRODUCTS



PARAMETER


ModelsOutput CapacityFloorStaffElectricityWater
ET12001200pcs/hour50*18Height≥4M2-3persons/shift55-70KW/Hour0.4-0.5Tons/Hour
ET15001500pcs/hour50*18Height≥4M2-3persons/shift80-90KW/Hour0.5-0.6Tons/Hour
ET18001800pcs/hour50*18Height≥4M3persons/shift110-130KW/Hour0.3-0.5Tons/Hour
CHARACTERISTIC


Energy-Saving
Equipped with a single-layer high-efficiency drying line to save natural gas.
Low Mold Input

The cost of supporting molds is low.

Flexible Production
Can produce a variety of products flexibly.
Easy Operation and Maintenance
The operation is simple, and ordinary operators can perform maintenance.
ABOUT US

ABOUT BESURE

In 1997, BST team imported the European production line to China and started the business of molded pulp products production. During the past 24 years, BST team dedicate themselves to the development of pulp molding industry and continue to extend to the downstream industry.  BST has now become the group corporation of R & D, manufacture and sales of the whole pulp molding production line, mold and moleded pulp products. It' s also a China-Europe cooperative international company with foreign factories around the world and the first listed pulp molding equipment manufacturer in China.


A China-Europe cooperative company and international group.

The 1st listed company of Chinese pulp molding machine manufacturers and high-echnology company.

Focusing on pulp molding equipment for over 24 years, the leader for world high-end pulp molding equipment.

Serving more than 400 customers all over the world with 6 local service centers.

FOUCUS ON PULP MOLDING EQUIPMENT

 BeSure headquarter is located in Foshan GuangDong which is the equipment manufacturing center in China, focusing on  R&D, manufacturing and sales of various kinds of pulp molding equipment and molds. The factory covers an area of 38000 square meters and has more than 250 employees.


BeSure technical staff accounts for more than 50% of the total number of company. The current staff number for equipment R & D , engineering installation and commissioning, electrical engineering process , technical support, mold design and making, production , quality control , sales is 131 in total, including 8 doctors, 19 masters, covering multiple disciplines such as mechanical, electronic, thermal engineering, fluid mechanics, paper making, product design, engineering design etc...


The equipment workshop is divided into several parts,including cutting, welding, assembling, painting, processing, electrical assembling and so on . There are different kinds of processing equipment such as CNC machine, milling machine, drilling machine, lathe, shearing machine, bending machine, wire cutting machine, etc.

Mold manufacturing workshop includes CNC processing, drilling, mesh covering, polishing, assembly and other processes. The workshop is equipped with tableware and fine packages machine for products R & D, testing and improving. At the same time it's also used for customers visit and technician training.


There is a sample workshop for mold tesing, sampling and small quantity products production. There is an entire equipment testing system including pulping system, vacuum system, high pressure water system, compressed air system for ex factory equipment commissioning to ensure that all the equipment is qualified before shipping. In order to improve the equipment intelligence, BST set up an R&D center in Europe where the world pulp molding industry originated. There are 6 employees currently and the center is focusing on the development of automatic equipment and production line, helping on BeSure technology innovation. At present, BST has several technologies which are the first innovation in China and has several national patents, leading the world pulp molding industry development. In July 2016, BeSure and Siemens achieved the strong alliances to facilitate pulp molding production line towards intelligence.

ENTERPRISE FAQ
  • How do you guarantee the quality of your company's equipment?
    The core components of our equipment are all international well-known brands, and the control system is Siemens brand in Germany.
  • What guarantee does your company have for after-sales service?
    Our company has six service centers around the world to provide timely and fast after-sales service for local customers.
  • What are the raw materials used in the equipment?
    Raw materials are divided into two categories: one is secondary recycled waste paper and the other is fiber pulp board.
  • How long can your equipment be delivered?
    The manufacturing time of the equipment is 4-5 months.
  • What countries does your company export to?
    Our equipment is sold to more than 60 countries all over the world, such as the United States, Canada, France, the United Kingdom, Russia, Malaysia, India, Saudi Arabia, Mexico, South Africa and so on.
