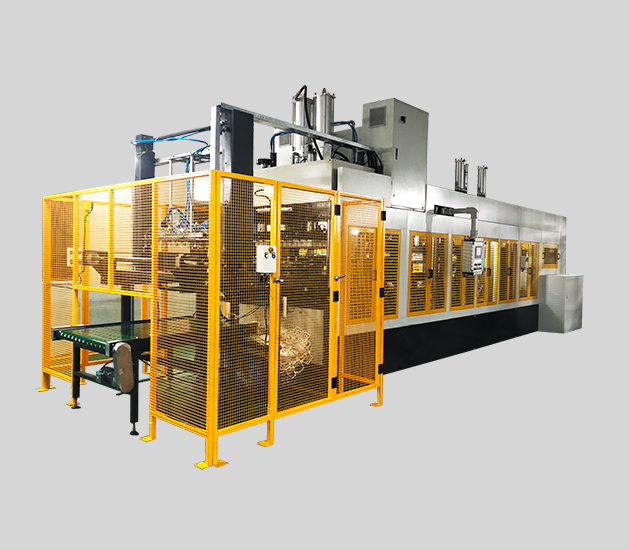

The pulp molded tableware production line is composed of a pulping system, forming equipment, vacuum system, high pressure water system and an air compressor system, and is used to produce disposable pulp molded tableware.
The pulp molded tableware production line is composed of a pulping system, forming equipment, vacuum system, high pressure water system and an air compressor system, and is used to produce disposable pulp molded tableware. The production line uses pulp from sugarcane, bamboo, wood, reeds, straw and other pulp boards as raw materials. The materials are prepared into a pulp with a certain concentration through the processes of hydra pulping, refining, adding chemical additives, etc. They are evenly attached to a special metal mold to form a wet blank product. A disposable pulp molded tableware product is produced through the processes of drying, hot pressing, trimming, and stacking. The average unit capacity of the forming system is 1T / day. And It can be customized per the actual order from the customer.
The biggest feature of the host system is the integration with forming, hot pressing, trimming and stacking. It is automatically and continuously completed without manual transfer, and can be achieved through the line without removing the mold and changing the mesh(completed in 5 minutes). This greatly saves the site, labor and power consumption, and improves the start-up rate, product qualification rate and product quality and provides easy maintenance.
Equipment Composition: Forming,3 Phase Hot Pressing, Trimming, Stacking
Platen Size: 1150mm*800mm
Capacity Each Machine: 1Ton/day(basing on 9 inch round dish, 17g)
Outline Dimension(mm): L 11400 *W 3250*H 3850
Forming Type: Reciprocating pulp suction and forming
The forming minimum shut height is 130mm. (mm): 120
Hot-press standard mold closing height(mm): 140
Forming Pressure: 5T
Hot Pressing pressure: 40T
Trimming Pressure: 60T
Product Height(mm): ≤65
Production Agle(°): ≥10
Product transfer method: Servo drive chain drives mesh frame transfer products
Heating Method Electricity: Electricity or Thermal Oil + Electricity
Control method: PLC + touch screen
Remarks: The above parameters are for reference. Due to the continuous development of technology, relevant data will be continuously updated
|TWB4000||4Tons/day||24 * 36Meters, height ≥4M||5Persons/shift||1000-1050KW/hour||0.4-0.6Tons/hour|
|TWB8000||8Tons/day||24 * 48Meters, height ≥4M||10Persons/shift||1900-1950KW/hour||0.9-1.1Tons/hour|
|TWB10000||10Tons/day||24 * 60Meters, height ≥4M||14Persons/shift||2300- -2400KW/hour||1-1.3Tons/hour|
|TWB20000||20Tons/day||184 * 36Meters, height ≥4M||18Persons/shift||4500-4600KW/hour||2.4-2.6 Tons/hour|
|TWB30000||30Tons/day||224 * 36Meters, height ≥4M||23Persons/shift||7000-7100KW/hour||7-3.9Tons/hour|
|TWB40000||40Tons/day||264 * 42Meters, height ≥4M||30Persons/shift||9035-9450KW/hour||4.9-5.1Tons/hour|
|TWB50000||50Tons/day||264 * 52Meters, height ≥4M||38Persons/shift||11400-11500KW/hour||6.2-6.4Tons/hour|
In 1997, BST team imported the European production line to China and started the business of molded pulp products production. During the past 24 years, BST team dedicate themselves to the development of pulp molding industry and continue to extend to the downstream industry. BST has now become the group corporation of R & D, manufacture and sales of the whole pulp molding production line, mold and moleded pulp products. It' s also a China-Europe cooperative international company with foreign factories around the world and the first listed pulp molding equipment manufacturer in China.
A China-Europe cooperative company and international group.
The 1st listed company of Chinese pulp molding machine manufacturers and high-echnology company.
Focusing on pulp molding equipment for over 24 years, the leader for world high-end pulp molding equipment.
Serving more than 400 customers all over the world with 6 local service centers.
FOUCUS ON PULP MOLDING EQUIPMENT
BeSure headquarter is located in Foshan GuangDong which is the equipment manufacturing center in China, focusing on R&D, manufacturing and sales of various kinds of pulp molding equipment and molds. The factory covers an area of 38000 square meters and has more than 250 employees.
BeSure technical staff accounts for more than 50% of the total number of company. The current staff number for equipment R & D , engineering installation and commissioning, electrical engineering process , technical support, mold design and making, production , quality control , sales is 131 in total, including 8 doctors, 19 masters, covering multiple disciplines such as mechanical, electronic, thermal engineering, fluid mechanics, paper making, product design, engineering design etc...
The equipment workshop is divided into several parts,including cutting, welding, assembling, painting, processing, electrical assembling and so on . There are different kinds of processing equipment such as CNC machine, milling machine, drilling machine, lathe, shearing machine, bending machine, wire cutting machine, etc.
Mold manufacturing workshop includes CNC processing, drilling, mesh covering, polishing, assembly and other processes. The workshop is equipped with tableware and fine packages machine for products R & D, testing and improving. At the same time it's also used for customers visit and technician training.
There is a sample workshop for mold tesing, sampling and small quantity products production. There is an entire equipment testing system including pulping system, vacuum system, high pressure water system, compressed air system for ex factory equipment commissioning to ensure that all the equipment is qualified before shipping. In order to improve the equipment intelligence, BST set up an R&D center in Europe where the world pulp molding industry originated. There are 6 employees currently and the center is focusing on the development of automatic equipment and production line, helping on BeSure technology innovation. At present, BST has several technologies which are the first innovation in China and has several national patents, leading the world pulp molding industry development. In July 2016, BeSure and Siemens achieved the strong alliances to facilitate pulp molding production line towards intelligence.
