The applied technologies are utilized to ensure BST Paper Pulp Molding Bagasse Pulp/Wood Pulp/Bamboo Pulp Tableware Production Line performance is stable. Its scopes of application are wide enough to cover the field(s) of Paper Product Making Machinery.
With years of development, BESURE occupies an important position in the Paper Product Making Machinery industry now. We are always in strict accordance with the international quality standards and quality management system, totally ensuring the product quality. The measured data indicates that meets the market requirements. We offer a range of design services to help you get exactly what you want.
| Applicable Industries: | Hotels, Food & Beverage Factory, Restaurant, Home Use, Food Shop, Food & Beverage Shops | Showroom Location: | France, India, Mexico, Russia |
| Condition: | New | Product Type: | Paper Plate Machine |
| Processing Type: | Pulp Molding Machine | Place of Origin: | Guangdong, China |
| Brand Name: | BST | Voltage: | 110V-440V, 50-60Hz |
| Power: | 1438 kw for the whole production line | Dimension(L*W*H): | 3030*3110*3350mm |
| Weight: | 19500 kg | Warranty: | 1 year after the installation |
| Production Capacity: | 20-40secs/cycle | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Marketing Type: | Ordinary Product |
| Warranty of core components: | 3 years | Core Components: | PLC, Bearing |
| Name: | TWA4800 Tableware Pulp Molding Production Line | Heating Source: | Electricity or Thermo-oil |
| Main forming machine type: | TSA2-9898 | Forming methods: | Reciprocating Forming |
| Control system: | PLC + touch screen control,Siemense | Main Drive system: | servomotor+high precison reducer+ pneumatic system |
| Drying method: | in mold drying | Production range of products: | Height ≤ 100mm, thickness ≤ 1.5mm |
| Material of Pulp Tank: | Stainless Steel 304 | Certification: | ce |
Fully automatic paper plate making machine
Product Information
tableware machine summary

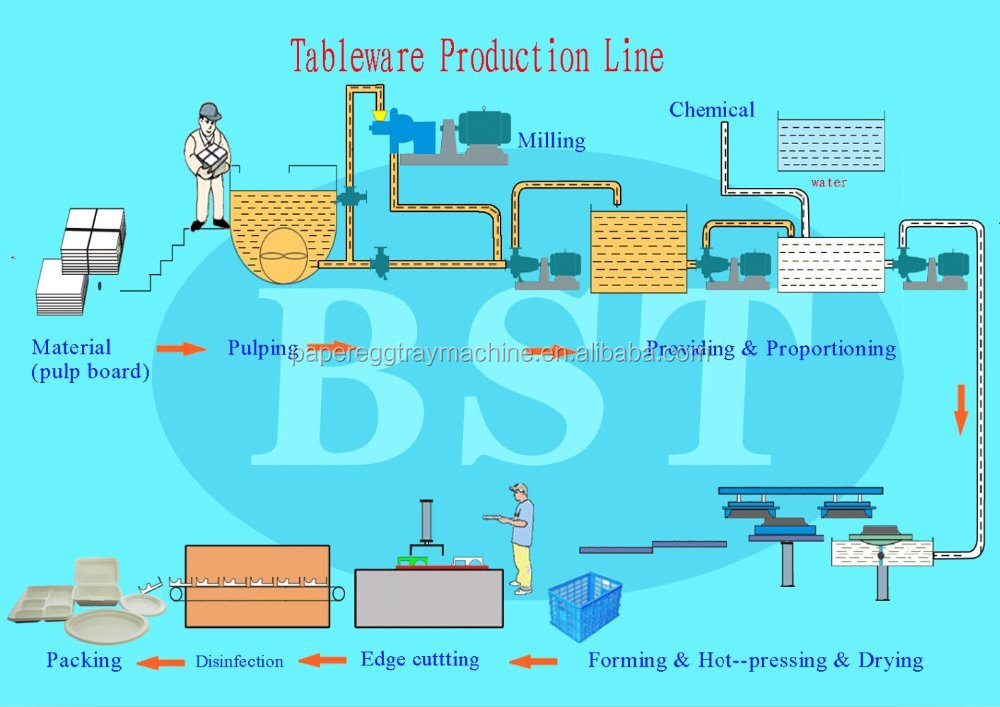

1.The moulded pulp tableware are produced with wood pulp,bagasse,bamboo pulp,reed pulp or straw pulp. After pulping, screening and refining process, the pulp will be adjusted to a certain consistency, and then it will be formed on the mold of the forming machine by vacuum suction. The final moulded pulp tableware can be produced then after drying, pressing,trimming,die-cutting and sterilizing.
2. moulded pulp tableware has high requirement on the output, hygiene and surface finishing, so the moulded pulp tableware machines that BST developed are with large platen size, fully automatic control, high precision platen machining, high precision mold processing and intelligent temperature control. With all these characteristics, molded pulp tableware machine from BST improved drastically the production efficiency, safety and product quality, and lowered the labor cost..
| Tableware machine feature | |
| Production quantity | 4.8T/day |
| Raw material | wood pulp , bamboo pulp or bagasse,reed pulp or straw pulp with 100% biodedgradable disposable tableware |
| Automation | Fully-automatic control |
| Quality standard | CE |
* All the water are recycled used in the production and the raw materials is waste paper, so it is a 100% environmentally production process. For the countries that lack of water, a water purifying system is recommended.
*The supplier will be responsible for the instruction in installation, test running and training. Warranty: one year since finishing the installation. | |
Production Description
Https://www.youtube.com/channel/UC6MGj5WZubBqNYnQ4lzJ_9A
Spare Parts

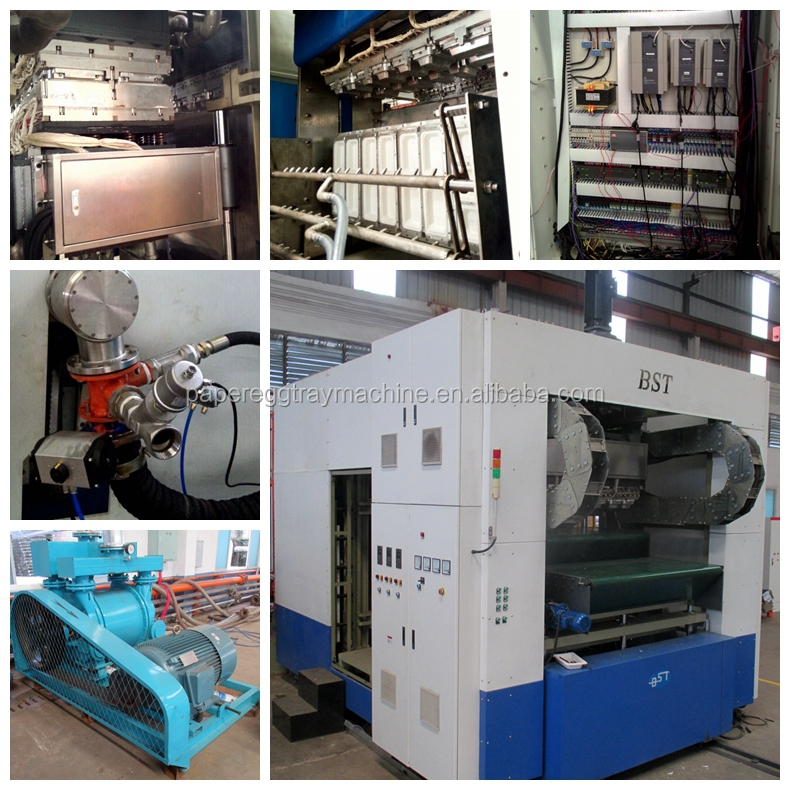

| Main equipment in system | tableware machine Description |
| Hydrapulper | It is mainly designed for the pulping of kinds of raw materials used in pulp molding process,such as bagasse, bamboo pulp, wood pulp, weed pulp etc. |
| refiner | to refine the fiber in the pulp material |
| thermoforming machine | adopted rolling-over forming design to ensure consistent thickness of each product from same mold cavity. 90 degrees elevation spraying system can guarantee the edge of products to be clean and tidy; Hockey stick type pressure output system, it is clean without pollution and can save power, its production efficiency is about 40% higher than similar equipment. All mold platens are disposable processed by large high precision CNC to ensure each product demould smoothly. It is more convenient without crushed, scratched product when changing the mold. The temperature of each product on the same mold is controlled independently, and it can be adjusted flexibly according to the product. The servo motor with gear racks can make the mold to realize horizontal and vertical movement, each mold will have smooth operation, accurate positioning; The function of automatic stacking and counting system can make the process of product finishing, statistics more convenient; The humanized operation interface is simple, convenient and fast; The process of drying, hot-pressing, forming will be automatic continuous completed on the same machine. So it has less ground demand and can save labor with no hands contact to products. |
Cooperative Brand
a.Main electrical components are supplied by "Siemens“.
b. Pneumatic components are supplied by “ Airtac ” from Taiwan.
c. main Hydraulic components are supplied by "REXROTH " from Germany .
d. guide(track) are supplied by " THK” from Japan.
e. Burners are supplied by "Baltur " from Italy.
f. Bearing are supplied by " NSK”from Japan.
g. Guide pillars and guide bush are supplied by “HIWIN”: from Taiwan.
h. ball screw shaft are supplied by “HIWIN”: from Taiwan .
i.serve motor are supplied by” Mitsubishi “from Japan.
