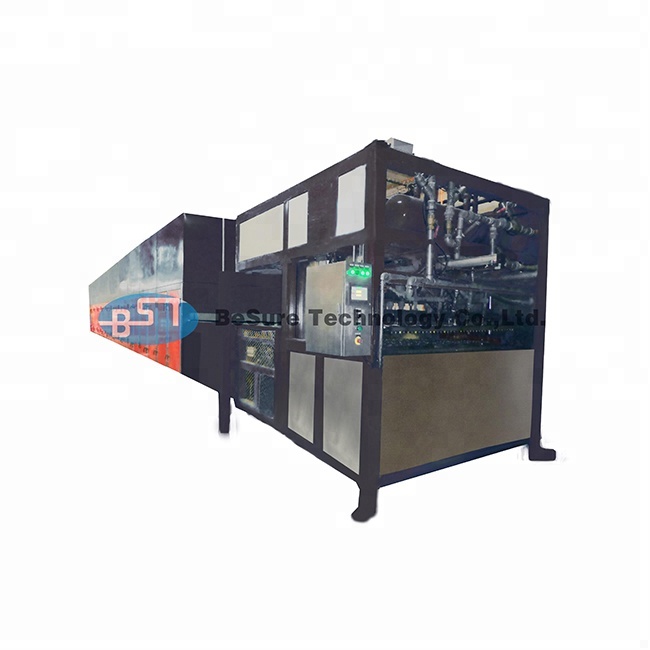

Having set up a team who are always involved in the product R&D,Foshan BeSure Technology Co., Ltd. keeps developing products on a regular basis. Our BST ETS1200A Reciprocating Fully Automatic Egg Tray Production Line Without Drying Line is launched to all customers from different fields. Egg Tray Machine In the future,BST ETS1200A Reciprocating Fully Automatic Egg Tray Production Line Without Drying Line will always adhere to the road of quality development, increase the investment in technology and talent introduction, always improve the core competitiveness of the enterprise, to achieve the goal of sustainable development.
| Applicable Industries: | Hotels, Farms, Restaurant, Food Shop | Showroom Location: | None |
| Condition: | New | Product Type: | Egg Tray Machine |
| Processing Type: | Pulp molding | Place of Origin: | Guangdong, China |
| Brand Name: | BST | Voltage: | 220V/380V |
| Power: | 79KW for the whole production line | Dimension(L*W*H): | 50m*18m*4.6m |
| Weight: | 10000 kg | Warranty: | 1 Year, One Year Guarantee |
| Production Capacity: | 100% | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Marketing Type: | Hot Product 2022 |
| Warranty of core components: | 3 years | Core Components: | PLC, Pressure vessel, Engine, Gear, Motor, Pump, Bearing, Gearbox |
| Name: | ETSA1200 Pulp molding egg tray production line | Main forming machine: | FUPP-12075 Reciprocating Forming Machine |
| Travel distance: | 600mm | The Minium shut height: | 100mm |
| Control System: | PLC control+ touch screen | The products height range: | ≤200MM |
| Raw material: | different kinds of waste paper including newspaper, old carton etc. | Drying Method: | by sunlight |
| Capacity: | 1200 pcs/ hour |
BST semi-automatic / full automatic Pulp molding machine adopts recycled newspaper, used cartons, waste paper, office paper as raw materials, through the process of pulping, absorption forming, reciprocated drying, shaping and stacking etc, producing different kinds of egg trays, with over 20 years experience and advanced patented technology, offering turnkey solutions for remarkable energy-saving, high efficiency and reliable pulp molding production line.
High precision servo motor drive,high efficiency and energy-saving drying line.
1,Use precision reducer servo motor forming and transferring to ensure smiith and fast operation.
2,Use absolute encoder to achieve accurate correction.
3,The use of bronze casting static and dynamic ring structure is more suitable for product dewatering process.
4,The use of mechanical structure to ensure that the mold close on both sides evenly.
5,Large capacity; Water content is low;Save the cost of drying.
Turm waste paper,such as old newspaper,magazines and cartons,into pilp of certain consistency through pupling,screening,and additive chemical application for forming ,main equipments,pulper,pulp tank,water tank,pilp pump,water pump,agitator consistency controller,control cabinet,etc.
Attach pulp onto the specially-made forming mold evenly through vacuum effect to make it into wet blank and then deliver it to the drying system.
Use geating fuels,such as GAS,LPG,LNG,diesel ,steam and thermo oil to dry the formeg wet blanks.
Count the number of dried products ,separate them and stack them up for automated packing.
Supply vacuum for product forming.
Supply compressed air for forming machine.
Supply high pressure water for washing molds of forming machine.
Production Line Overview
Automation Condition;Fully automatic production line,Only putting material and packing manually,other processes pulping,forming,drying,hot pressing and stacking automatically.
Output: Maximun capacity:1200 pcs/hr.(product size:300*290mm,weight:65-75g/pc)
Operator Required: 4people/shift to operate the whole system.(One for pulping,one for forming ,one for stacting and one for moving.)
Recommended Workshop Size: 50x 18 (m), height>5m.can be adjusted according to customer's requirement
Installation: Supplier should appoint 2 engineers to instruct buyer in installstion,test-run and training
Warranty: Life-long service, sustainable supply and upgrade of parts and components,One-year
warranty( three-year warranty for machanical parts and main structure)
Production line configuration: this is a standard production,or we can fulfill the needs of customized require
Pre-sales service
With more than 20 years of accumulated technical experience, we will be based on your investment intentions, such as capital, plant, target market and other details of a full range of analysis.
On sale service
1.According to your internal size of the workshop, we will not only provide you detailed layout, the planning of pipe and line design, also provide basis of your equipment infrastructure construction, procurement and installation of materials.
2.When equipment into the factory, by the capable installation team to install and debug; After commissioning, the staff training of the system, including two parts: classroom explanation and practice, the structure of the equipment, principle and production technology, day-to-day maintenance and common troubleshooting and other contents of the detailed explanation and practical exercises.
After-sale service
The equipment we sold: "Lifelong tracking service, one year free warranty" (except for vulnerable parts and abnormal failure), one year after, the cost of spare parts and service.
