The key to BST TWB6000 Eco-friendly Fully Automatic Clamshell Production Line competitiveness is innovation.Compared with the traditional ones, it better meets the market demands.So the product is widely used in Paper Product Making Machinery.
As a driven company,Foshan BeSure Technology Co., Ltd. has been developing products on our own on a regular basis, one of which is Pulp Tableware Machine, Pulp Molding Machinery, Egg Tray Machine, Pulp Molding Production Line.It is the newest product and bound to bring benefits to customers. It has been proved that high-end technologies can contribute to the high-efficiency manufacturing process.In the field(s) of Paper Product Making Machinery,BST TWB6000 Eco-friendly Fully Automatic Clamshell Production Line is widely accepted by users. BST TWB6000 Eco-friendly Fully Automatic Clamshell Production Line,as one of our best and latest products, deserved to be noticed widely and displayed to customers around the world.
| Applicable Industries: | Hotels, Manufacturing Plant, Food & Beverage Factory, Restaurant | Showroom Location: | None |
| Condition: | New | Product Type: | Paper Plate Machine |
| Processing Type: | Pulp Molding Machine | Place of Origin: | Guangdong, China |
| Brand Name: | BST | Voltage: | 220V/380V |
| Power: | 2250KW for the whole production line | Dimension(L*W*H): | 35x22x5 |
| Weight: | 25000 kg | Warranty: | 1 Year |
| Production Capacity: | 99.5% | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Marketing Type: | Hot Product 2022 |
| Warranty of core components: | 3 years | Core Components: | PLC, Bearing |
| Name: | TW6000 Tableware Pulp Molding Production Line | Main Forming Machine type: | TSA3-11580 |
| Application: | to produce clamshell/plate/dish and so on | Platen Material: | stainless steel |
| Certification: | ce | After-sales Service Provided: | Field installation, commissioning and training |
| Forming method: | Reciprocating suction way | Driving mode: | servo motor+precision reducer+pneumatic+hydraulic integrated drive |
| Heating method: | electric or thermal oil | Raw material: | Bagasse Pulp,Wood Pulp,Bamboo Pulp and so on. |
1. Able to finish mesh replacement within as short as 5 mins;
2. Screen frame transfer method is adopted,which reduces the consumption of vacuum and compressed air; less hole blocking chances and time for mold maintenance extended by 1-2 months,black spots over the products avoided;
3. Fully automatic operation on forming, hot pressing, trimming, testing and stacking, reducing labor cost.
High precision servo motor drive,high efficiency and energy-saving drying line.
1,Use precision reducer servo motor forming and transferring to ensure smiith and fast operation.
2,Use absolute encoder to achieve accurate correction.
3,The use of bronze casting static and dynamic ring structure is more suitable for product dewatering process.
4,The use of mechanical structure to ensure that the mold close on both sides evenly.
5,Large capacity; Water content is low;Save the cost of drying.
Pulp board and clean waste paper will be made into pulp with certain concentration through pupling screening, grinding and addition of chemical agents, including:pupler,grinder,pulp tank, water tank,pulp pump,water pump,agitator,consistency and control cabinet.
The pulp is vacuumized to evenly attach to special forming mold as wet blank which is transferred to hot pressing mold ,with finished products made through drying and hot pressing processes;finally products will be transferred and stacked together.

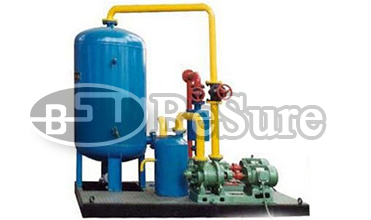

Supply vacuum for product forming.
Supply compressed air for forming machine.
Supply high pressure water for washing molds of forming machine.
Some products shall be subject to post treatment,e.g.:edgecutting ,punching ,coating ,labeling and printing.BST can provide the corresponding machines.
Some products shall be subject to post treatment,e.g.:edgecutting ,punching ,coating ,labeling and printing.BST can provide the corresponding machines.
Some products shall be subject to post treatment,e.g.:edgecutting ,punching ,coating ,labeling and printing.BST can provide the corresponding machines.
Production Line Overview
Automation Condition;Fully automatic production line.
Output: 6T/Day.(9 "dish,weight:16±2g)
Operator Required: 5people/shift to operate the whole system.
Recommended Workshop Size: 24x 104 (m), height>6m.can be adjusted according to customer's requirement
Installation: Supplier should appoint 2 engineers to instruct buyer in installstion,test-run and training
Warranty: Life-long service, sustainable supply and upgrade of parts and components,One-year warranty( three-year warranty for machanical parts and main structure)
Production line configuration: The production line is standard,can also be customized according to customer demand,can be used to produce a variety of pulp molding tableware,such as meal boxes,dishes,plate,discs,separators,etc.
With more than 20 years of accumulated technical experience, we will be based on your investment intentions, such as capital, plant, target market and other details of a full range of analysis.
On sale service
1.According to your internal size of the workshop, we will not only provide you detailed layout, the planning of pipe and line design, also provide basis of your equipment infrastructure construction, procurement and installation of materials.
2.When equipment into the factory, by the capable installation team to install and debug; After commissioning, the staff training of the system, including two parts: classroom explanation and practice, the structure of the equipment, principle and production technology, day-to-day maintenance and common troubleshooting and other contents of the detailed explanation and practical exercises.
After-sale service
The equipment we sold: "Lifelong tracking service, one year free warranty" (except for vulnerable parts and abnormal failure), one year after, the cost of spare parts and service.
