Applying the technology to the manufacturing process of the product turns out to be highly helpful. Featuring stability and durability, the product is suitable for the field(s) of Egg Tray Machine. BST ET1800 Small Production Capacity Waste Pulp Egg Tray /Cup Carrier Holder/ Fruit Tray Production Line enables the company to have more market share, stronger competitiveness and higher visibility. Relying on our excellent products and sensible marketing strategy,Foshan BeSure Technology Co., Ltd. hold a firm belief that we will take a large market share in the future and benefit our stakeholders as well.
| Applicable Industries: | Hotels, Farms, Retail, Food Shop | Showroom Location: | None |
| Condition: | New | Product Type: | Egg Tray Machine |
| Processing Type: | Pulp Molding Machine | Place of Origin: | Guangdong, China |
| Brand Name: | BST | Voltage: | 110V-440V |
| Power: | 180 kw for the whole production line | Dimension(L*W*H): | 23m*2m*4.2m |
| Weight: | 8000 kg | Warranty: | 1 year |
| Production Capacity: | 30pcs/min | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Marketing Type: | Ordinary Product |
| Warranty of core components: | 3 years | Core Components: | PLC, Bearing |
| Name:: | ET1800 Egg Tray Pulp Molding Production Line | Worker quantity: | 3-4 persons |
| Frequency: | 50Hz/60Hz | Forming machine type: | FUD-22540 Automatic Reciprocating Forming Machine |
| Mold Material: | High Stength Plastic or Aluminum | Working Type: | Vacuum Forming |
| Control method: | PLC+Touch screen control | Raw Material: | different kinds of waste paper including newspaper, old carton etc. |
| Electronical control part brand: | Siemens | Certification: | ce |
paper pulp coffee cup holder molding machine
egg tray molding machine is used for making molded pulp products, such as egg tray, egg carton/box/fruit tray and industrial tray from waste paper.
1. Production quantity: 1800pcs/hr
2. Raw material: all kinds of waste paper like newspaper and waste cartons, magazines and so on.
3. Fuel: natural gas, LPG, diesel , Coal(steam,thermo oil) etc.
4. Automation: Fully-automatic control
5. Quality standard: CE
7. All the water are recycled used in the production and the raw materials is waste paper, so it is a 100% environmentally production procecss. For the countries that lack of water, a water purifying system is recommended.
8. The supplier will be responsible for the instruction in installation, test running and training. Warranty: one year since finishing the installation for free.
For further inquiry, please feel free to contact us. We are always ready to give you the best service.
|
egg tray molding machine description |
|
|
Main egg tray molding machine equipment |
Description |
| Hydrapulper | It is mainly designed for the pulping of kinds of raw materials used in pulp molding process, such as old newspaper,used cartons,paper off cuts and etc. |
| Vibration Screen | In this model of pulp molded production line, the pulping system is equipped with a low frequency vibration screen as the main device to screen impurities in the pulp, such as nails, plastic pieces, stone, rubber etc. |
| Automatic Rotary Forming Machine | Use for pulp forming the pulp molded |

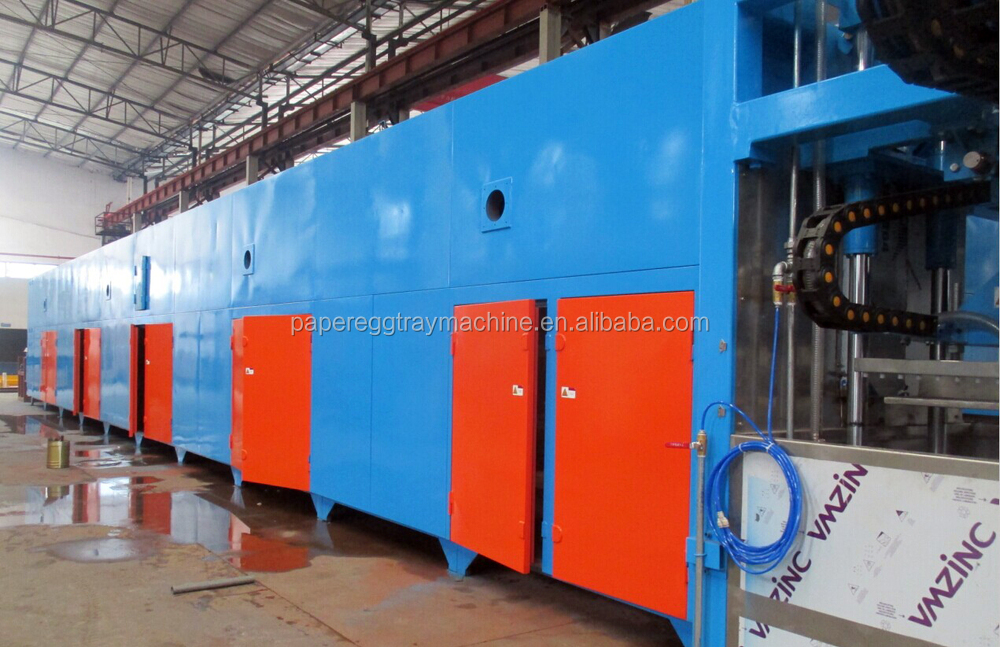

| Drying Line | Use for dry wet pulp molded after forming |
| Finished sorting system | The finished products will be counted and stacked automatically after drying |
Want to see more video of egg tray molding machine? please copy as following link and Subscribe Us to get newest information:
Https://www.youtube.com/channel/UC6MGj5WZubBqNYnQ4lzJ_9A

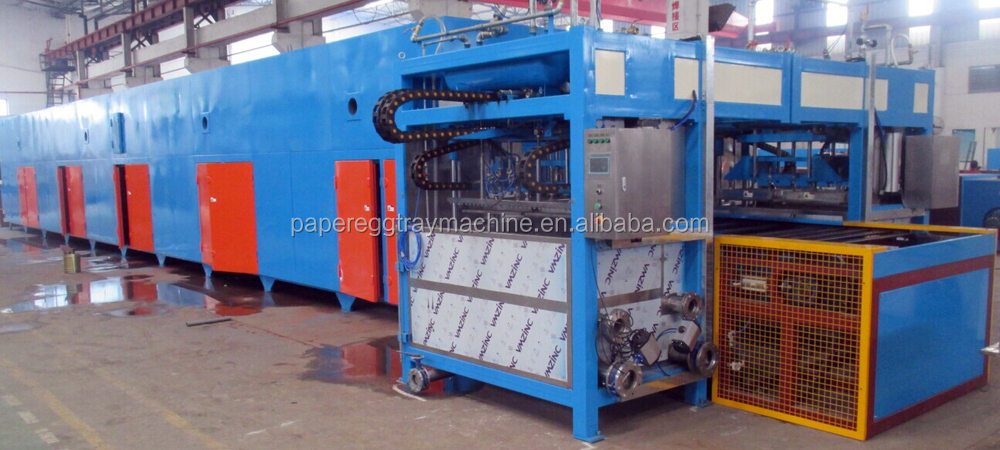

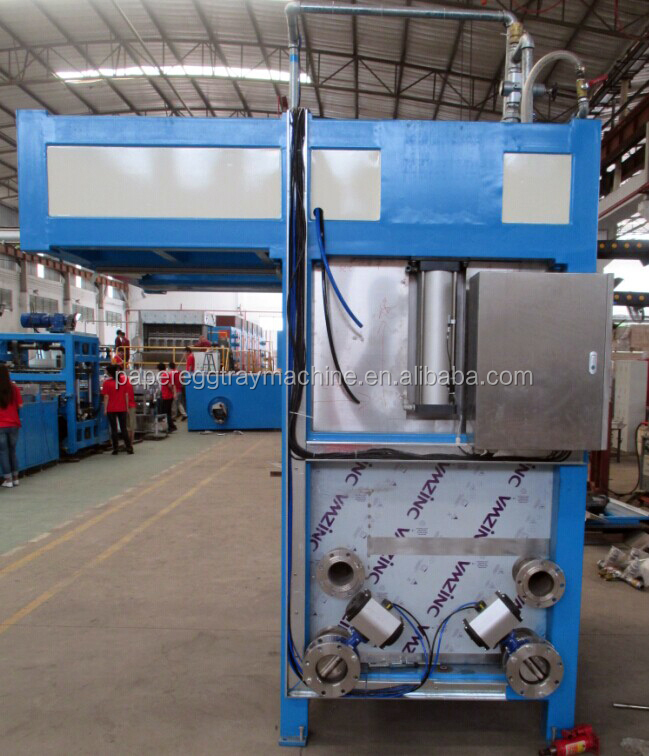

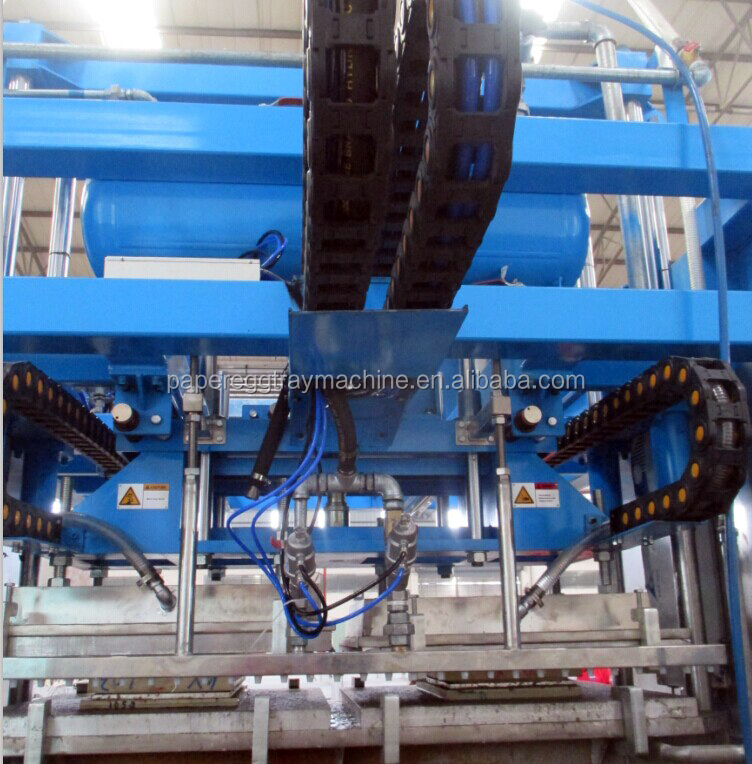

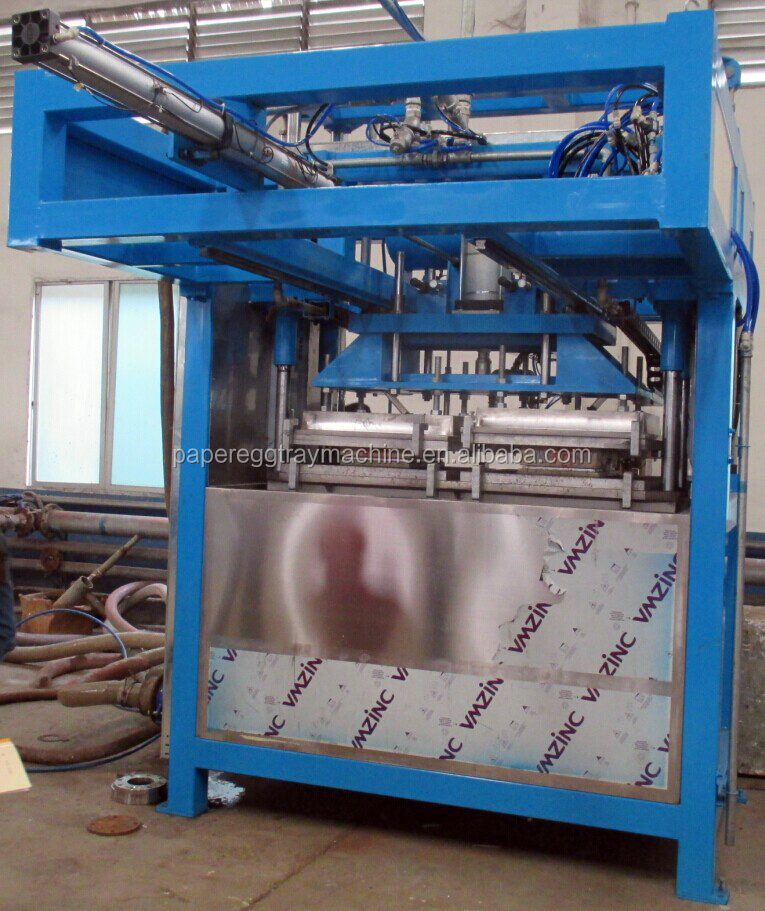

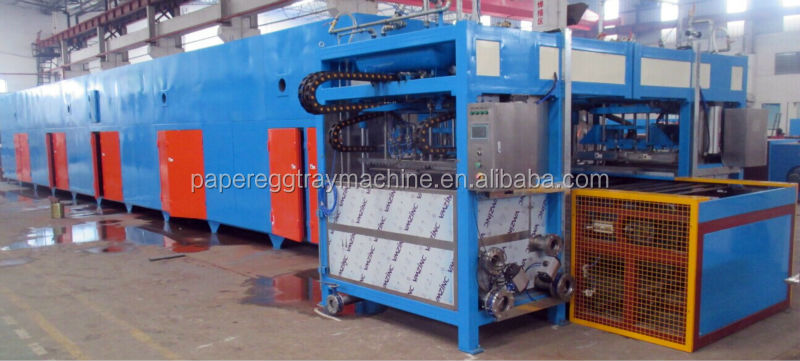

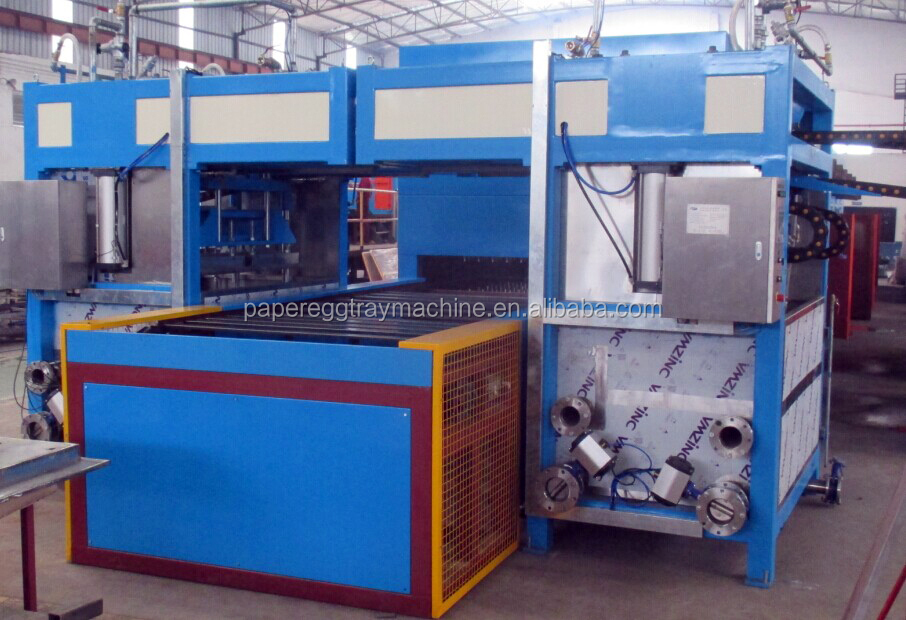

egg tray molding machine pictures
How dose egg tray molding machine work
egg tray molding machine Application
Others about egg tray molding machine
1. The egg tray molding machine is easy to learn and use, service is convenient. Also the scope of the machine is wide. It can produce egg carton, egg box, egg tray, bottle tray, agricultural train seeding cup, industrial production packing. The equipment is best-selling nation and is sold abroad.
2. The raw material is the waste paper, the raw materials are free pollution, can be recycled and easy to find. The equipment performance is stable.
What service you can get from BST?
(1). Market Consulting and Positioning
(2). Workshop Designing
(3). Product Designing
(4). Layout Designing
(5). Equipment Choosing
(6). Machine Making
(7). Mold Designing and Making
(8). Machine Installation
(9). Machine Upgrading and Modification
(10).Spare Parts Supplying
More powerful quality guarantee
1. More complete service system and one stop solution service.
2. More energy-saving Technology.
3. responsible for the life of the machine.
4. Warranty period is 1 year, the mechanical and structural parts are warranted for 3 years.
5.10years spare part availability.
6. Main parts :
Main electrical components are supplied
by "Siemens“.
b. Pneumatic components are supplied by “ Airtac ”
from Taiwan.
c. main Hydraulic components are supplied by
"REXROTH " from Germany .
d. guide(track) are supplied by " THK” from Japan.
e. Burners are supplied by "Baltur " from Italy.
f. Bearing are supplied by " NSK”from Japan.
g. Guide pillars and guide bush are supplied by
“HIWIN”: from Taiwan.
h. ball screw shaft are supplied by “HIWIN”:
from Taiwan .
i.serve motor are supplied by” Mitsubishi
“from Japan.
After-sales Service:
A: The Seller will send two engineers to the buyer’s factory, they are responsible for the instruction of installing machine and training the operator until the machine working normally. All the expenses out of china (including the round-trip air tickets, foods and hotel, salary ) should be borne by the buyer. The buyer should prepare one translator for our engineers to communication.
B: After guarantee period the Seller will send engineer on the Buyer’s request. All the expenses of this engineer will be borne by the Buyer’s company, and service charge will be negotiated by the Buyer and the Seller.
C: 24Hours online technical consulting service make your problem solve on time.
D: For more after-sales service request can be discuss with us.
Want to see more video of egg tray molding machine? please copy as following link and Subscribe Us to get newest information:
Https://www.youtube.com/channel/UC6MGj5WZubBqNYnQ4lzJ_9A
FAQ
(1).What kind of material we can use as the raw material?
Any kind of waste paper like old newspaper,magazines,books,A4 paper etc, and easy to get
(2).What kind of Fuel can be used for the whole production line?
Generally is coal,natural gas,diesel oil can be selectable.
(3).What kind of products can be made by this machine?
All paper trays like paper egg tray,egg carton,egg box,fruit tray,bottle tray,electric product
packing,shoes tray etc.
(4).Are you manufacturer?
Yes,BST have been making pulp molding machine for more than 20 years ,we are one of the most important pulp molding machine manufacture in the world,and we are the largest pulp molding machine manufacturer in China.
(5).How many countries have your machine been installed ?
Besure team has served many customers distributed in all continents from more than 30 countries. They are mainly from Great Britain, Czech Republic, Poland, Macedonia, Turkey, Mexico, Brazil, Argentina, Ecuador, Malaysia, India, Vietnam, Thailand, Russia, South Korea, Yemen, Algeria, Syria, Libya, Morocco and Tunisia etc.
(6).will you install the machine for us and teach us how to use the machine?
of course,our engineer will install the machine for you in your factory,and teach your workers how to make production.
