The product is made by technologies, some of which are developed on our own while others are learned from other famous brands.In the fields like Packaging Forming Machines, our product is widely used for its versatility and guaranteed quality. The technology greatly improves product performance and accelerates the manufacturing process.It has a considerably expanded application range and is popular in the field(s) of Packaging Forming Machines. Influenced by the market trends and customers' requirements, the design of Pulp Tableware Machine, Pulp Molding Machinery, Egg Tray Machine, Pulp Molding Production Line is made to be unique. It adopts the raw materials that have been tested to conform to the quality standards, which guarantees its quality from the source.
| Applicable Industries: | Food & Beverage Factory, Farms | Showroom Location: | United States, India, Mexico |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Hot Product 2022 | Warranty of core components: | 3 years |
| Core Components: | PLC, Engine, Bearing, Motor, Pressure vessel, Gear, Pump | Condition: | New |
| Automatic Grade: | Automatic | Usage: | Paper Forming Machine |
| Place of Origin: | Guangdong, China | Brand Name: | BST |
| Voltage: | 380V/220V | Weight: | 15000 KG |
| Warranty: | 1 Year, One Year Guarantee | Key Selling Points: | Energy saving |
| Name: | FR4-19040 Automatic Rotary Forming Machine | Application: | Produce paper Egg Tray /Coffee Cup Tray/Fruit Tray |
| Forming platen: | 4-faces rotary structure | Driving mode: | Rotary forming and transfer with frequency motor+precision reducer |
| Control system: | PLC+touch screen | Heating method: | Drying Line |
| Raw material: | Different kinds of waste paper including newspaper, old carton etc. | Capacity: | 6000pcs/hour |
| After-sales-Service: | Engineers |

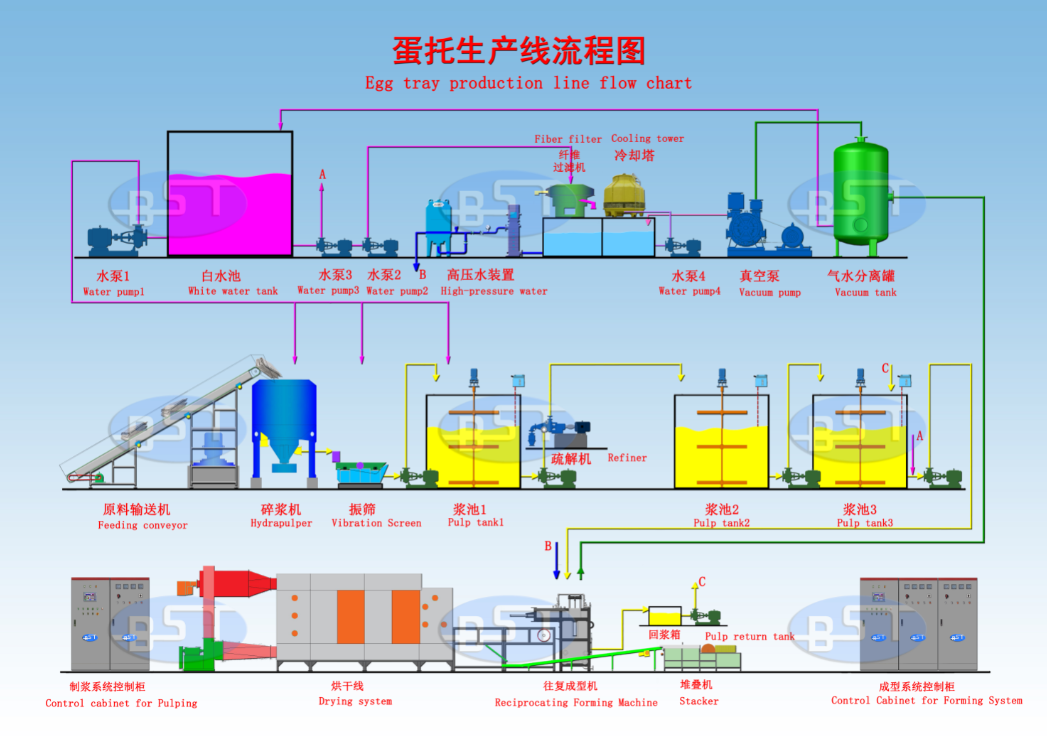

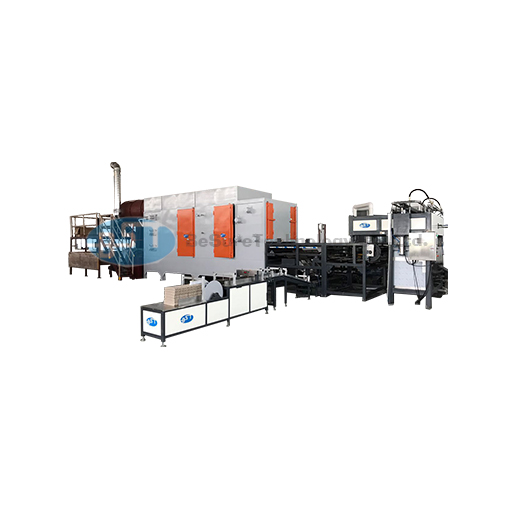

Production Line Brief Introduction
| Model | ET60000 |
| Capacity | 60000 pcs / hour |
| Floor | 60*24m, height≥6m |
| Staff | 3-4 people / shift |
| Electricity | 256KW / hour |
| Water | 1.35T / hour |

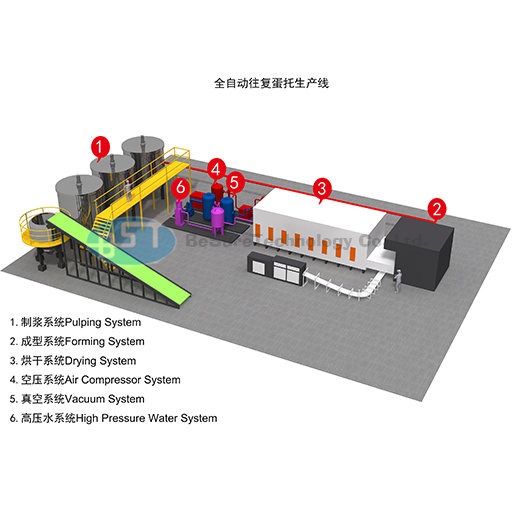

Introduction of Main Equipments
| Model | ET6000 |
| Pulping System | Equipped with 5m3 pulper, pulping capacity: 495kg/hour |
| Fully-automatic control, including:pulping, pulp proportioning & supply, controlled by PLC automatically, which can maintain stable pulp consistency | |
| Forming System | Fully-automatic Rotary Forming Machine |
| Platen size: 1900x400mm | |
| 30 cells egg tray 5 pcs/drop | |
| Drive mode: Pneumatic, Airtac Brand | |
| Control mode: Touch screen + PLC, Simens Brand | |
| Cycle time: 3 seconds | |
| Drying System | 8-layer drying line, drying capacity: 90-120kg/hour, heating fuels: gas, diesel, LPG, thermo oil, and steam, etc. |
| Outline dimension: 21800×3250×5200mm | |
| Effective width of chain plate:1900mm*330mm | |
| Burner: Baltur,1 | |
| Stacking & packing system | After rolling off the drying line, the products will be delivered and stacked automatically. The stacking height will be adjusted mannually for packing. |
