The applied technologies are utilized to ensure BST IP3000 Fully Automatic High-performance Pulp Molding Industrial Packaging Production Line performance is stable.Its scopes of application are wide enough to cover the field(s) of Paper Product Making Machinery.
In Foshan BeSure Technology Co., Ltd., our creative employees including R&D experts and technicians largely contribute to the successful development of BST IP3000 Fully Automatic High-performance Pulp Molding Industrial Packaging Production Line. We expect great profitability from the product release can benefit all customers. The BST IP3000 Fully Automatic High-performance Pulp Molding Industrial Packaging Production Line launched by the company are made using the company's newly developed advanced technology, which perfectly solves the long-standing pain points of the industry. Under the guidance of quality-oriented management theory, Foshan BeSure Technology Co., Ltd. continually ride the development trend of the times and continuously implement the strategic transformation. Our aim is to not only satisfy the needs of customers but also create needs for them.
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Food & Beverage Factory, Home Use, Construction works | Showroom Location: | None |
| Condition: | New | Product Type: | Paper Packaging Making Machine |
| Processing Type: | Pulp Molding Machine | Place of Origin: | Guangdong, China |
| Brand Name: | BST | Voltage: | 220V/380V |
| Power: | 195 kw for the whole line | Dimension(L*W*H): | 24x48x4.6 |
| Weight: | 11000 kg | Warranty: | 1 Year, 1year Guarantee |
| Production Capacity: | 3 t/day | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Marketing Type: | Hot Product |
| Warranty of core components: | 3 years | Core Components: | PLC, Bearing |
| Name: | IP3000 Pulp Molding Industrial Packaging Production Line | Control method: | PLC+Touch screen control |
| Application: | to produce industrial packages | Capacity: | 3 t/day |
| Material of pulp tank and plate: | Stainless steel | Certification: | ce |
| After-sales Service Provided: | Field installation, commissioning and training | Forming machine type: | FUD-12080 Fully-automatic Reciprocating Forming Machine |
| .Product height range: | ≤200mm |
1. With high degree of automation combining forming, drying and hot pressing automatically, saving labor and reducing land occupation.
2. Using drying system with high efficiency and energy saving
3. High-performance moisture removal system, low energy consumption;
4. Flexible for different products with strong adaptability.
High precision servo motor drive,high efficiency and energy-saving drying line.
1,Use precision reducer servo motor forming and transferring to ensure smiith and fast operation.
2,Use absolute encoder to achieve accurate correction.
3,The use of bronze casting static and dynamic ring structure is more suitable for product dewatering process.
4,The use of mechanical structure to ensure that the mold close on both sides evenly.
5,Large capacity; Water content is low;Save the cost of drying.
pulp board and clean waste paper will be made into pulp with certain concentration through pupling screening, grinding and addition of chemical agents, including:pupler,grinder,pulp tank, water tank,pulp pump,water pump,agitator,consistency and control cabinet.
Attach pulp onto the specially-made forming mold evenly through vacuum effect to make it into wet blank and then deliver it to the drying system.
Supply vacuum for product forming.
Supply compressed air for forming machine.
Supply high pressure water for washing molds of forming machine.
Related Instructions

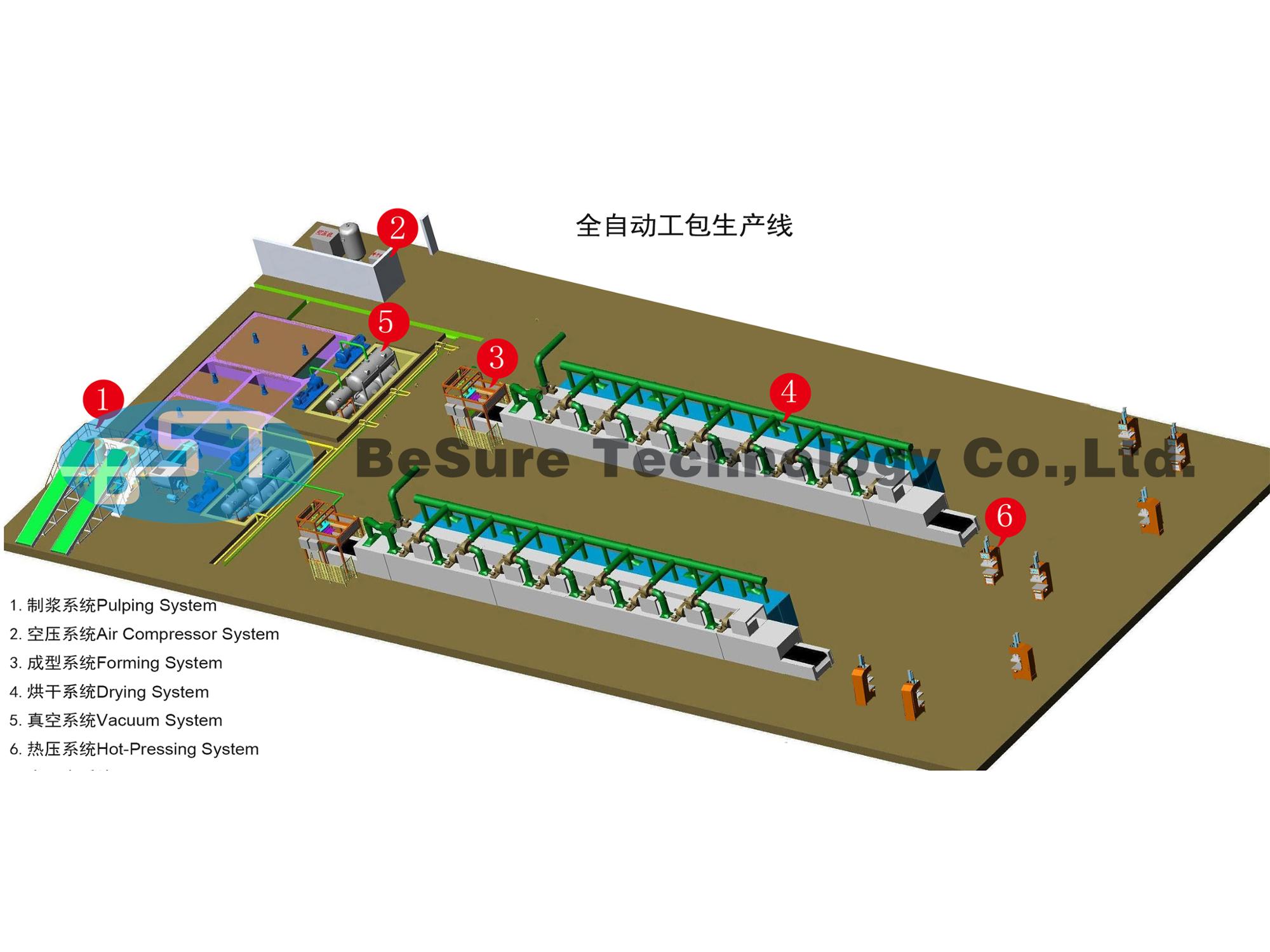

Production Line Overview
Automation Condition;Fully-automatic production line, pulping, forming hot pressing for automatic completion, post-processing (trimming, punching, etc.) for manual operation..
Output: 3t/day(when producing different products, there will be a difference in production, this data is for reference only).
Operator Required: Pulping machine 1 People, the main operation 1 people,trimming 1 people, inspection packaging 1 people, repair 1 people. At total of 5 people/shift
Recommended Workshop Size: 48x 18 (m), height>6m.can be adjusted according to customer's requirement
Installation: Supplier should appoint 2 engineers to instruct buyer in installstion,test-run and training
Warranty: Life-long service, sustainable supply and upgrade of parts and components,One-year warranty( three-year warranty for machanical parts and main structure)
Production line configuration: The production line is standard, can also be customized according to customer demand, can be used to produce a variety of pulp molding tableware, such as meal boxes, dishes, plate, discs, separators,etc.
With more than 20 years of accumulated technical experience, we will be based on your investment intentions, such as capital, plant, target market and other details of a full range of analysis.
On sale service
1.According to your internal size of the workshop, we will not only provide you detailed layout, the planning of pipe and line design, also provide basis of your equipment infrastructure construction, procurement and installation of materials.
2.When equipment into the factory, by the capable installation team to install and debug; After commissioning, the staff training of the system, including two parts: classroom explanation and practice, the structure of the equipment, principle and production technology, day-to-day maintenance and common troubleshooting and other contents of the detailed explanation and practical exercises.
After-sale service
The equipment we sold: "Lifelong tracking service, one year free warranty" (except for vulnerable parts and abnormal failure), one year after, the cost of spare parts and service.
