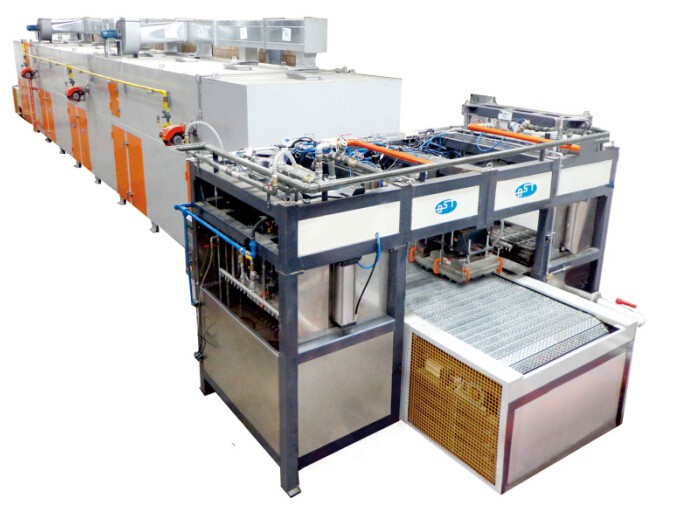

After the listing of BST IP6000 High-performance & Low Energy Consumption Fully Automatic Pulp Molding Industrial Packaging Production Line, with its differentiated functions, it not only meets the real needs of customers, but also brings more value-added experience to customers, so that the company's product sales and market popularity have exploded increase.What's more customization service is offered to meet different demands.
Foshan BeSure Technology Co., Ltd. has been focusing on developing products regularly, of which Pulp Tableware Machine, Pulp Molding Machinery, Egg Tray Machine, Pulp Molding Production Line is the newest. It is the newest series of our company and is expected to surprise you. Our product can be tailored to suit you perfectly. BESURE has been dedicated to the design, R&D, manufacturing, and updates of Pulp Tableware Machine, Pulp Molding Machinery, Egg Tray Machine, Pulp Molding Production Line. We fully hope that we can satisfy customers from different fields, countries, and regions by offering them high-quality products and professional service. If you have any questions or problems, please contact us at any time through the contact information listed on our website.
| Applicable Industries: | Garment Shops, Home Use | Showroom Location: | Canada |
| Condition: | New | Product Type: | Pulp industrial package molding machine |
| Processing Type: | Pulp Molding Machine | Place of Origin: | Guangdong, China |
| Brand Name: | BST | Voltage: | 110V-440V, 50Hz/60Hz |
| Power: | 337 kw for the whole production line | Dimension(L*W*H): | 25m*2.6m*3.6m |
| Weight: | 10000 kg | Warranty: | 1 Year |
| Production Capacity: | 6t/day | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Marketing Type: | Ordinary Product |
| Warranty of core components: | 3 years | Core Components: | PLC, Bearing |
| Name: | IP6000 Pulp Molding Industrial Packaging Production Line | Final products: | shock-proof inner packages for electrical product and industrial part |
| Main forming machine type: | FUD-12080 Fully-automatic Reciprocating Forming Machine | Drive mode: | pneumatic |
| Mold Material: | High Stength Plastic or Aluminum or Bronze | Control method: | PLC+Touch screen control |
| Processing Material: | Recycled paper , news paper, corrugated board | Capacity: | 6T/day |
| Certification: | ce | After-sales Service: | Installation, Training, Technical Support |
BST pulp molding packaging material making machine
BeSure Tech IP6000 industrial molded pulp inner paper package production line

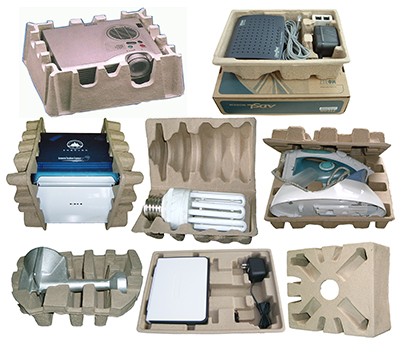

Applicable industries: Electronics,digital products,liquor,furniture,toys,cosmetics,hardware, ceramics, automobile accessory,flowers and plants,etc.
Purpose:inner packing,shock proof outer packing.
Product Summary:
Molded pulp for industrial package is made from recycled paper such old newspaper and used cartons.. It is shock absorbent and protects goods from damage in storage and during transit. It has excellent anti static properties and offers superior protection of goods than conventional
polystyrene and extruded plastics package. It is ideal for sensitive electronic equipment
and fragile items. It is much cheaper than conventional plastics based package leading
to major raw materials cost savings in both the short and long term.
| production line of general molded pulp industrial packaging | |
| Production quantity | 6T/day |
| Raw material | all kinds of waste paper like newspaper and waste cartons, magazines and so on. |
| Fuel | natural gas, LPG, diesel , Coal(steam,thermo oil) etc. |
| Automation | Fully-automatic control or Semi-automatic control |
| Quality standard | CE |
| Floor | 65*12m.height≥6m |
| Staff | 6-8 persons/shift |
| Electricity | 236KW/hr |
| Water | 0.54m³/hr |
| Warranty | one year since finishing the installation for free. |
* All the water are recycled used in the production and the raw materials is waste paper, so it is a 100% environmentally production process. For the countries that lack of water, a water purifying system is recommended.
*The supplier will be responsible for the instruction in installation, test running and training. | |

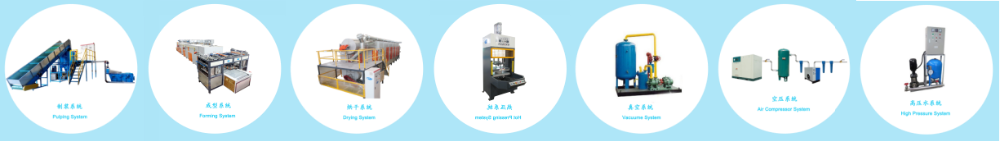

Composition of the system
The production line is comprised by 7 system as following:
Pulping system: pulp board and clean waste paper will be made into pulp with certain concentration through pulping screening, grinding and addition of chemical agents, including: pulper, grinder, pulp tank, water tank, pulp pump, water pump, agitator, consistency controller and control cabinet. FormingSystem: Attach pulp onto the specially-made forming mold evenly through vacuum effect to make it into wet blank and then deliver it to the drying system.
Drying system: Use heating fuels, such as GAS, LPG, LNG, diesel, steam and thermo oil to dry the formed wet blanks.
Hot-pressing system:Hot press the dried product delivered manually.
Vacuum system: Supply vacuum for forming transferring products.
Air compressor system: Supply compressed air for forming machine.
High pressure water system: Supply high pressure water for washing molds of forming machine.
Flow chart of production line of general molded pulp industrial packaging
Want to see more video of Molded pulp egg tray machine ? please copy the following link and Subscribe Us to get newest information::
Https://www.youtube.com/channel/UC6MGj5WZubBqNYnQ4lzJ_9A
(1). Market Consulting and Positioning
(2). Workshop Designing
(3). Product Designing
(4). Layout Designing
(5). Equipment Choosing
(6). Machine Making
(7). Mold Designing and Making
(8). Machine Installation
(9). Machine Upgrading and Modification
(10).Spare Parts Supplying
a.Main electrical components are supplied by "Siemens“.
b. Pneumatic components are supplied by “ Airtac ” from Taiwan.
c. main Hydraulic components are supplied by "REXROTH " from Germany .
d. guide(track) are supplied by " THK” from Japan.
e. Burners are supplied by "Baltur " from Italy.
f. Bearing are supplied by " NSK”from Japan.
g. Guide pillars and guide bush are supplied by “HIWIN”: from Taiwan.
h. ball screw shaft are supplied by “HIWIN”: from Taiwan .
i.serve motor are supplied by” Mitsubishi “from Japan.
